“Green” Completion Status and Details:
- Airbus has scheduled “Green” delivery to take place on or around August 2012
- The best value Anywhere for a new Airbus
Airframe Highlights:
- EASA Certification
- 5 ACT Auxiliary Fuel Tanks
- MTOW Increase – 76.5 Tons
Engines:
GUARANTEED LONDON TO LOS ANGELES RANGE!
| |
Left & Right |
| Engine Make |
IAE International Aero Engines |
| Engine Model |
V2527M-A5 w/SelectOne Product Upgrade |
| Description |
Two-shaft high-bypass turbofan engine |
| Thrust |
26,500 lbs per engine |

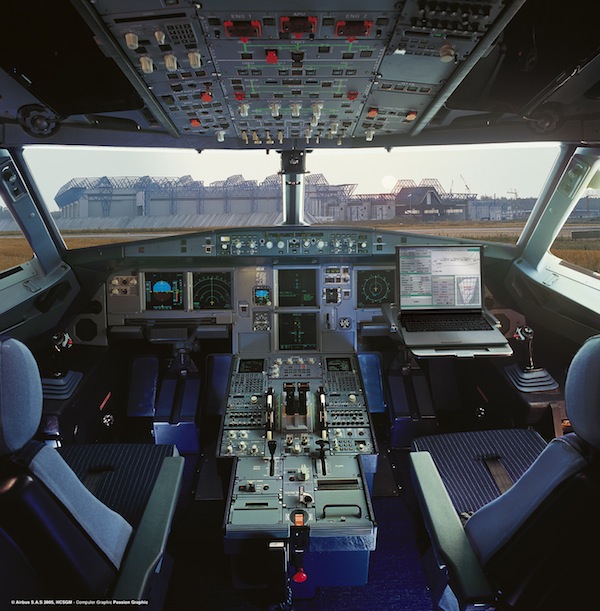

Standard Avionics:
Digital Automatic Flight System (AFS) consisting of:
- Two (2) Flight Augmentation Computers
- Two (2) Flight Management & Guidance Computers
- Two (2) Multipurpose Control & Display Units
- Flight Control Unit
- Dual Autopilot & Flight Director
- Dual Autothrust
- Fail Operational Automatic Landing
- Aircraft Communication Addressing & Reporting system (ACARS)
- Dual Radio Altimeters
- Air Data/Inertial Reference system (ADIRS)
- Global Positioning Unit (GPS)
- Digital Flight Data Recording system (DFDRS)
- Centralized Fault Display system (CFDS)
- Aircraft Integrated Data system (AIDS)
- Electronic Instrument System (EIS)
- Integrated Standby Instrument system (ISIS)
|
- Two (2) HF Data Radio systems (HFDR)
- Three (3) VHF Data Radio systems (VDR)
- Audio/SELCAL & Call systems
- Solid State Cockpit Voice Recorder (SSCVR)
- System Provisions and limited installation for the CIDS
- Two (2) Radio Management Panels w/8.33 kHz spacing (RMP)
- Emergency Locator Transmitter
- Dual Distance Measuring Equipment (DME)
- Automatic Direction Finder (ADF)
- Weather Radar system
- Traffic & Collision Avoidance systems (TCAS II)
- Multifunction Printer
- Up & Down Data Loading system
- Central Warning System (CWS)
- Enhanced Ground Proximity Warning system (EGPWS)
- ATC Transponder – Mode S
|
Avionics Options (SCN’s):
- Additional wiring for single HFDL function
- Activation of HFDL function for HFDR
- System provisions for SRT2100 SATCOM
|
- ECAM – OEB reminder function activation on FWC
|
Additional Equipment / Options (SCN’s):
- Installation on electrical outlets in the cockpit
- Fourth (4) occupant seat in cockpit
|
- Installation of electrical foot warmers for pilots
|
Final Completion:
- Completion center to be selected by buyer
Standard Configuration & Provisions:
- Galley – Provisions for both forward and aft galley
- Lavatories – One Lavatory should be installed forward of the forward passenger/crew door, with complete provisions for forward and aft passenger lavatories
Documentation used to build this specification summary (Available Upon Request):
- Airbus ACJ Specification Document – Available thru Jetcraft
- Spec Change Notices (SCN) – Airbus ACJ – March 2012
