Airframe:
3623.4 Hours; 1753 Landings
Date of Manufacture – July 31, 2000
Certificate of Airworthiness Date – August 11, 2000
Fresh 8C Inspection March 2012
SmartParts Coverage
Engines:
|
Left |
Right |
| Description |
Rolls Royce BR710-A2-20 |
| Engine Serial # |
12229 |
12228 |
| Hours Since New |
3623.4 |
3623.4 |
| Cycles Since New |
1753 |
1753 |
| Engine Coverage |
Rolls Royce Corporate Care |
APU:
| APU Model |
Allied Signal RE220 (GX) Auxiliary Power Unit |
| APU Serial Number |
P-159 |
| APU Time/Cycles |
2,475 hours / 3,560 Cycles |
| APU Coverage |
Honeywell MSP |
Avionics:

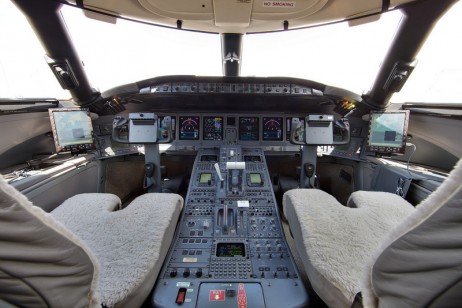

This Global Express is well equipped with a fully integrated Honeywell Primus 2000XP 6-Tube EFIS avionics suite generally summarized as follows:
- Six 8″x 7″ DU-870 Color EFIS displays, 2 PFD / 2 EICAS / 2 MFD
- Triple Integrated NZ-2000 Flight Management Systems (FMS) w/ Dual Global Positioning Systems (GPS)
- Triple HG-2001 Inertial Reference Systems
- Triple AZ-840 Micro Air Data Computers (MADC)
- Autothrottle System
- Full Authority Digital Engine Control System (FADEC)
- Engine Indication/Crew Alerting System (EICAS)
- Honeywell Autopilot
- Primus 880 Color Weather Radar
- Honeywell MCS6000 SATCOM System
- Allied Signal Mark V EGPWS
- Flight Data Recorder
- Triple Honeywell IAC 800 Batch 2+ upgrade – 009 software
|
- Dual Honeywell RCZ-833K Integrated COM/Ident Radios w/Enhanced Mode ‘S’ Diversity Transponders
- Dual Honeywell RNZ-851 Integrated NAV Radios w/VOR/ILS/MKR/ADF/DME (FM Immunity)
- TCAS II Traffic Alert & Collision Avoidance System w/Change 7
- Dual Primus II (RM-855) Radio Mgmt. Units
- Dual Collins ALT-4000 Radio Altimeters
- Dual Collins HF-9000 HF Comm System
- Coltech CSD-714 SELCAL System
- Central Aircraft Information Maintenance System (CAIMS)
- Cockpit Voice Recorder
- Artex 406hz ELT
|
Avionics Options:
- Max-Viz EVS-1000 Enhanced Vision System
- CMC Electronics CMA 1100 class 2 EFB’s
- WSI AV-300 Satellite Weather System
- Autopilot Emergency Decent Mode
|
- 3rd VHF Comm RCZ-833 (8.33 MHz)
- Lighting Sensor System (SB-700-34-003)
- Emergency Vision Assurance System (EVAS) – Pilot/Co-Pilot
|
Cabin Entertainment & Additional Features:
- Office in the Sky Option: (SB 700-23-003)
- MagnaStar C-2000 Airborne Telephone System with five (5) handsets
- Airborne Teledyne Datalink (S/B 700-23-005)
- Multi-disc CD player located in LHS entertainment cabinet
- Three (3) DVD players
- Two (2) 18” LCD displays
- LCD display in crew rest area

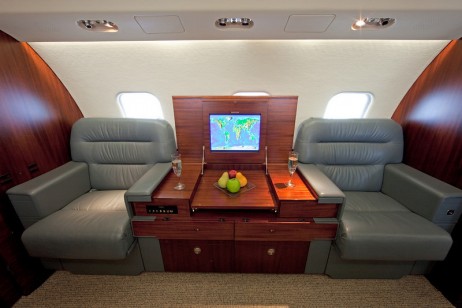

- LCD pop-up display in aft cabin credenza
Cabin Audio System consisting of:
- Four (4) PA speakers
- Ten (10) acoustic speakers
- Three (3) subwoofers
- Five (5) amplifiers
|
- Airshow System
- Humidification System
- Computer/Blackberry Communication Server in mid cabin cabinet that allows Blackberry messaging in flight
- Electric window shades
- Jumpseat
- First Aid Kit
- Printer/fax machine
- 115 V 60hz power outlets throughout
- Multiple USB and monitor jacks throughout
- Pulse landing light system
- Logo lighting system
- Crew & passenger lifevests
- Three (3) Life rafts
|
Interior:
This Global Express features a fireblocked ten (10) passenger forward galley configuration consisting of the following:

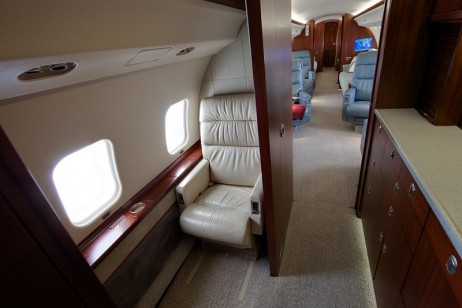

- Forward crew rest area with single belted forward facing seat

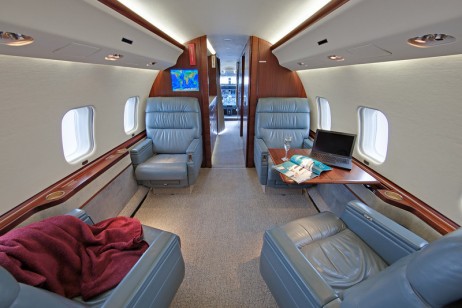

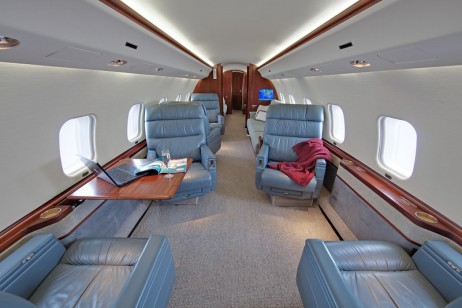

- Forward four (4) place club with foldout tables

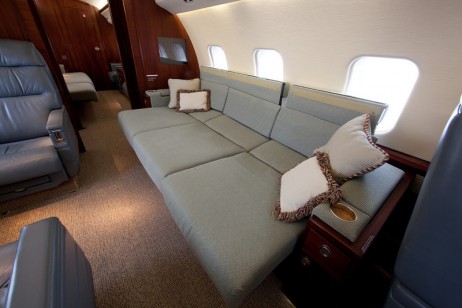

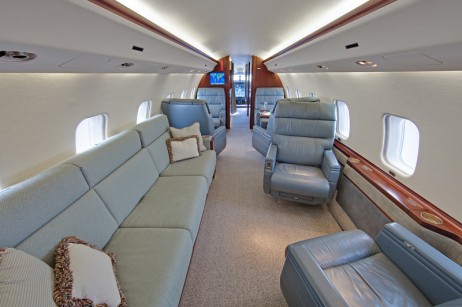

- Mid cabin two (2) place berthable divan opposite of a two (2) club with fold out tables
- Bulkhead which separates the mid cabin and aft cabin and houses a computer, printer/fax, entertainment equipment and a single non-belted seat

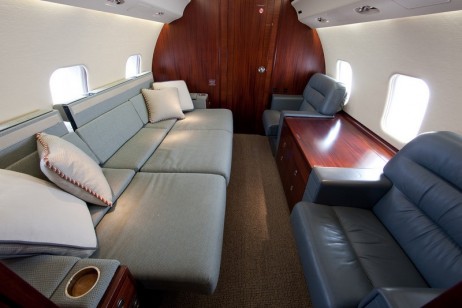

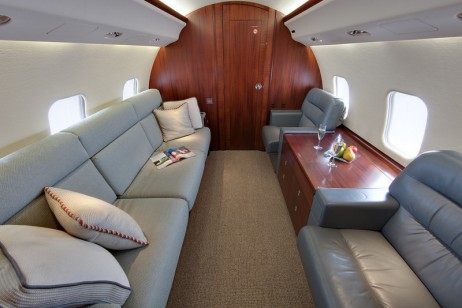

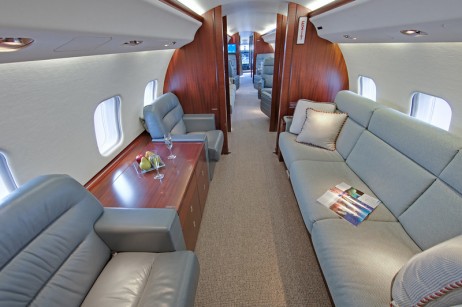

- Aft cabin two (2) place berthable divan opposite of two (2) side facing, non-belted seats separated by a credenza

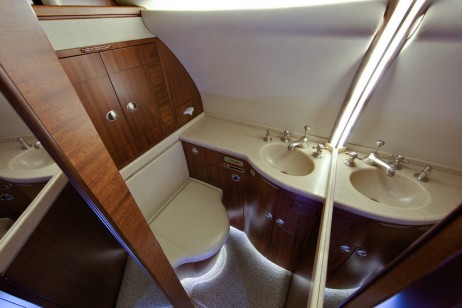

- Forward crew lavatory
- Aft lavatory with wardrobe and aft baggage access
- Cockpit Flight Observer seat (Jumpseat)

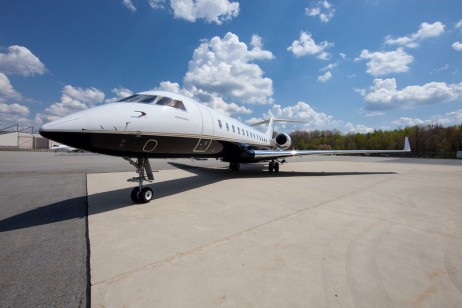

Exterior:

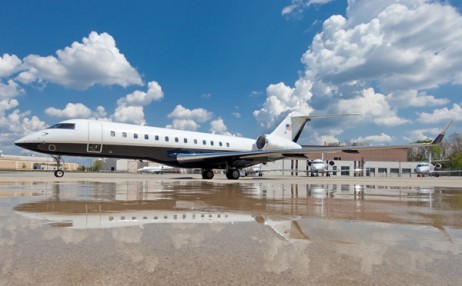

Overall Matterhorn White with Antique Gold and Midnight Blue accent stripes. New October 2007 by Savannah Air Center/Jet Aviation.

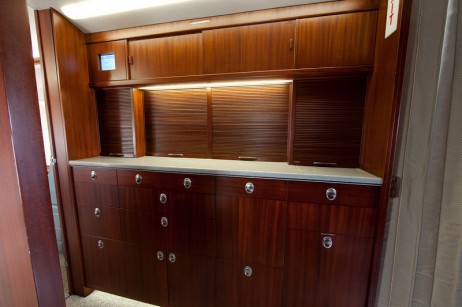

Galley Features:
- TIA Hi-Temp oven
- Sanyo microwave oven
- Krups coffee maker
- 10.4”Touch screen monitor
|
- Air chiller
- China/crystal storage
- Wine bottle/can storage
|
Weights:
- Gross Weight (Ramp): 96,250 lbs
- Max Take Off Weight: 96,000 lbs
|
- Max Landing Weight: 78,600 lbs
- Last Weighed: 8/31/2009
|
Maintenance Highlights:
| Inspection |
Last Complied With |
Next Due |
| 1A |
March 31, 2012 |
|
| 2A |
2,999 hrs – June 2008 |
4,000 hrs |
| 3A |
2,999 hrs – June 2008 |
4,500 hrs |
| 6A |
2,673 – October 2007 |
5,723 hrs |
| 9A |
- |
4,500 hrs |
| 1C |
March 31, 2012 |
|
| 2C |
March 31, 2012 |
|
| 4C |
March 31, 2012 |
|
| 8C |
March 31, 2012 |
|
| 12C |
- |
December 2016 |
| 16C |
- |
December 2021 |
Maintenance Tracking Done by CAMP
Further Technical Data Available Upon Request
