Bombardier CRJ-200LR · # 7755 | Jetcraft Corporation

Airframe:

9,845 Hours Total; 8,534 Landings (estimated)
No Known Damage History

Engines:

	Left & Right
Description	General Electric CF34-3B1
Serial Number	872657	873658
Engine Time Since New	9,845 Hours	9,845 Hours
Engine Cycles Since New	8,534 Cycles	8,534 Cycles
TBO	On Condition

APU:

Description	Honeywell GTCP-36-150(RJ)
Serial Number	P155C
TBO	On Condition

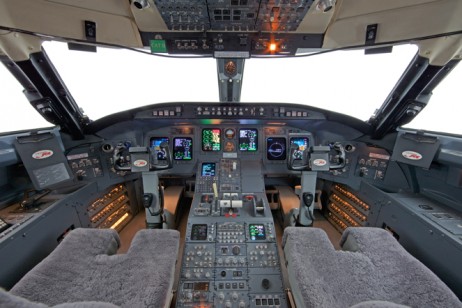

Avionics:

This Bombardier CRJ-200 (Hemisphere 200XR) is equipped with an integrated; six tube Collins Pro-Line 4 avionics suite. It is an all-EFIS system that draws on Collins extensive experience in glass-cockpits. A general summary of this aircraft’s Collins Pro-Line 4 avionics suite is as follows:

Dual Collins FCC-4000 Digital Flight Control Computers
Dual Litton Aero LTN-101 Digital Autopilot System
Collins RTA-844 Weather Radar
Dual Collins ADC-850A Air Data Computers
Single Collins FMS-4200 Flight Management Systems With CDU
Dual Collins VHF-422A Communication Transceivers
Dual Collins ADF-462 Automatic Direction Finders
Dual Collins DME-442 Distance Measuring Equipment

Dual Collins VIR-432 Navigation Receivers
Dual Collins DCU-4004 Data Concentrator Units
Dual Collins ALT-55 Radar Altimeter
Allied Signal EGPWS Enhanced Ground Proximity Warning System With Windshear Detection
Collins TCAS II Traffic Collision Avoidance System With Ch.7
Collins GPS-4000A GPS Receiver
L-3 Comm. FA2100 Cockpit Voice Recorder
L-3 Comm. DA2100 Flight Data Recorder
Dual Collins TDR-94D Mode S Transponders

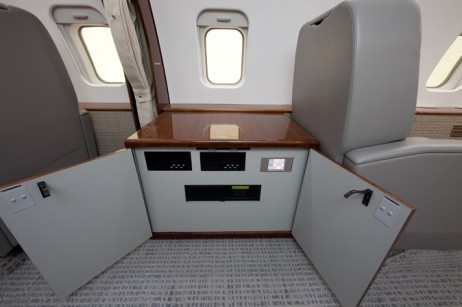

Additional Equipment:

Audio Intl. Cabin Management System
Airshow 410
Passenger Address System
ICS-200 Two-Channel Iridium Satellite Telephone System
Emergency Exit Lighting System

Two (2) 18” LCD Monitors
Two (2) DVD Players
One (1) 10-disc CD Player
Twelve Midrange/Tweeter and 3 Subwoofer Stereo Speakers
Two (2) Audio/Visual Amplifiers

Exterior:

New Exterior Paint – Matterhorn White Base

Interior:

New 15 passenger VIP layout completed by PATS Aircraft and is laid out as follows:

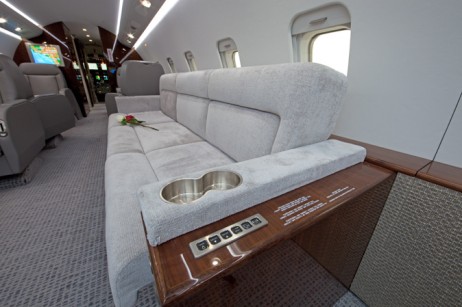

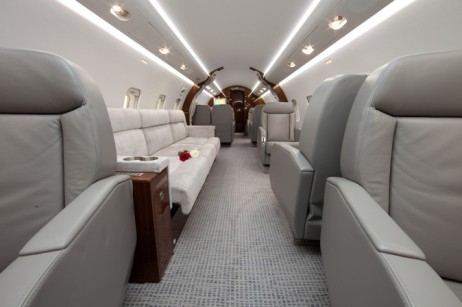

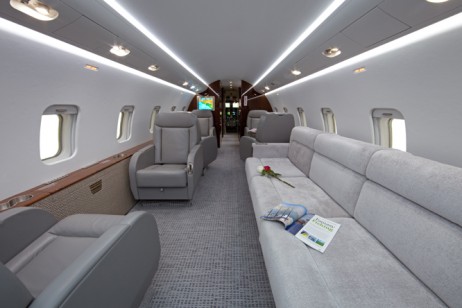

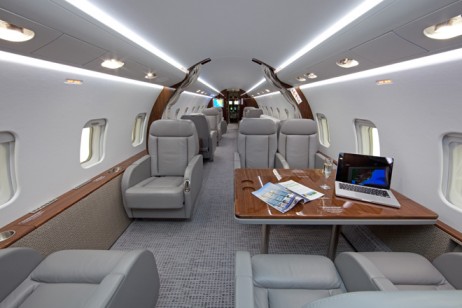

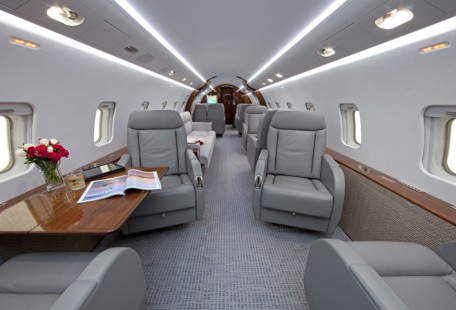

Forward four (4) place club with pull-out tables, mid cabin two (2) place club with pull-out tables, opposing three (3) place 16G berthable divan, and an aft four (4) place conference grouping with hi-lo table opposing a two (2) place club with pull-out tables. The Main Cabin is divided forward of the conference group with a soft divider. A pocket door separates the galley from the main cabin.

Forward Entryway:

Left Side Wardrobe
Leather Flight Attendant Jumpseat
Airstair
Acoustical Curtain

Forward Lavatory:

Smoke Detector, Dropdown Oxygen Mask and Air Gasper
Hot/Cold Water

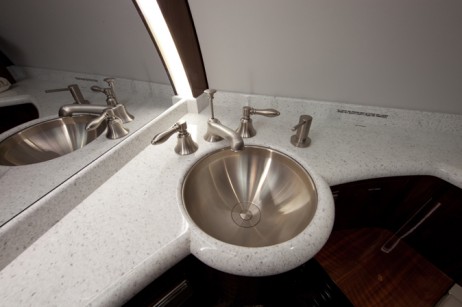

Vanity with Storage for Toiletries and Waste Container
Self-Contained Chemical Toilet

Forward Galley:

High Temperature Oven
Manual Fill Coffee Maker
One (1) 230V/60Hz Universal Outlet
Insta-Hot Faucet
Ample Storage for Crystal and China

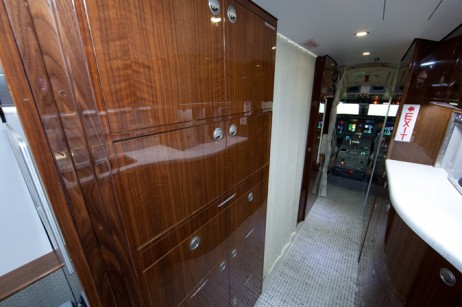

Forward Galley Annex:

Miscellaneous Storage Drawers
Pull-out Work Surface
Divided Flatware Storage Drawer

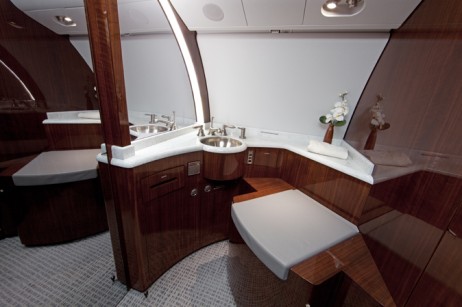

Aft Lavatory:

Smoke Detector, Dropdown Oxygen Mask and Air Gasper
Hot/Cold Water
Attendant Call Switch
One (1) 230V/60Hz Universal Outlet
PA System Speaker
Vanity with Storage for Toiletries and Waste Container
External Toilet Service System

Auxiliary Fuel System:

New installation in 2009 by PATS Aircraft, LLC in Georgetown, Delaware. Full PATS warranty coverage and FAA/JAR certification.

Weights:

Maximum Taxi Weight – 53,250 lbs	Maximum Landing Weight – 47,000 lbs
Maximum Takeoff Weight – 53,000 lbs	Fuel Capacity – 2,728 gal (2,135 Main + 593 Aux)

Aircraft for sale

2003 Bombardier CRJ-200LR · # 7755
