Aircraft for sale

2008 Bombardier Challenger 850 · # 8063

View all aircraft for sale »

Steve Schulte Photography 314-313-1622
  • Steve Schulte Photography 314-313-1622
  • cockpit2
  • 8063galley3
  • 8063midcabin3
  • 8063cabinaft2
  • 8063cabinfwd2

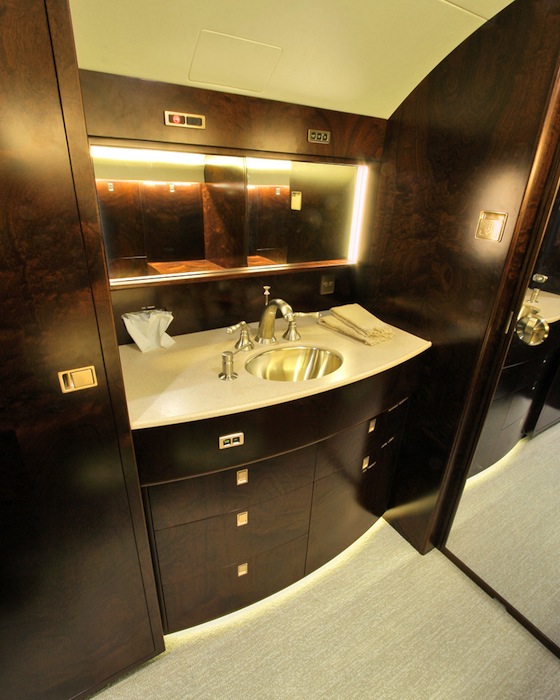

  • 8063aftlav2
  • 8063fwdlav2

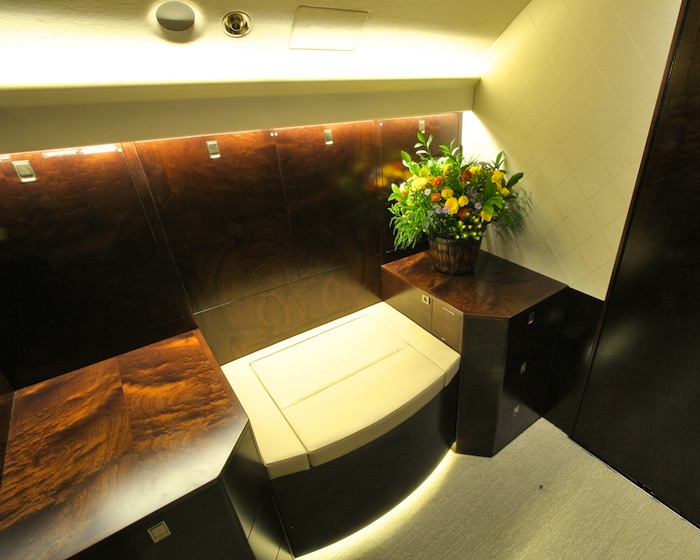

  • 8063aftlav6

Airframe:

1589 Hours Total;  871 Landings (As of February 2012)
Currently EU-OPS 1 Compliant
Maintenance Tracking Program: CAMP

Engines:

Left & Right
Description General Electric CF34-3B1
Serial Number E950527 E950528
Engine Time Since New 1589 Hours 1589 Hours
Engine Cycles Since New 871 Cycles 871 Cycles
HSI and Overall On Condition

APU:

Description Honeywell GTCP-36-150(RJ)
Serial Number P-1311
APU Time Since New 2,000 Hours

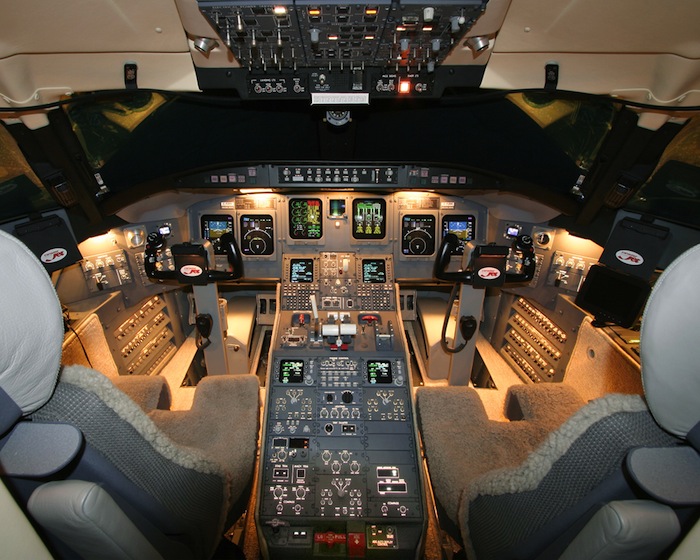

Avionics:

This Challenger 850 is equipped with a Collins Pro-Line 4 with EICAS avionics suite. A general summary of this aircraft’s Collins Pro-Line 4 avionics suite is as follows:

  • Dual FCC-4000 Digital Flight Control Computers
  • Dual ADC-850 Digital Air Data Computers
  • Dual DCU 4000 Data Concentrator Units
  • Dual RTU-4000 Radio Tuning units
  • MDC-4000 Maintenance Diagnostic Computer
  • Collins WXR 840 Color Weather Radar
  • Dual Collins FMS-4200 Flight Management System
  • Dual Collins GPS-4000A GPS
  • Dual Collins AHRS
  • Dual VHF 422C Comm System with 8.33 spacing
  • Dual VIR-432 Nav System with FM immunity
  • Dual DME 442
  • Dual ADF 462
  • Dual TDR-94D Mode S Transponders
  • Dual Collins ALT-55B Radio Altimeter
  • Collins TCAS 94 (TCAS II with Change 7)
  • Collins HF-9000 HF with Coltech SELCAL

Additional Equipment:

  • RVSM, MNPS and RNP 5 Equipped
  • L3 Communications SSCVR Cockpit Voice Recorder (2 hour)
  • L3 Communications SSFDR Digital Flight Data Recorder
  • Honeywell Mk V EGPWS
  • Artex C406-2 ELT
  • Iridium ICS-200 SATCOM Communications System


  • Airshow 4000 Passenger Information System
  • Audio International Cabin Management System
  • Fwd cabin bulkhead 15″ LCD monitor, aft cabin bulkhead 20″ LCD monitor
  • Mid cabin credenza pop-up 20″ LCD monitor
  • Dual DVD Players
  • Multiple disc CD changer

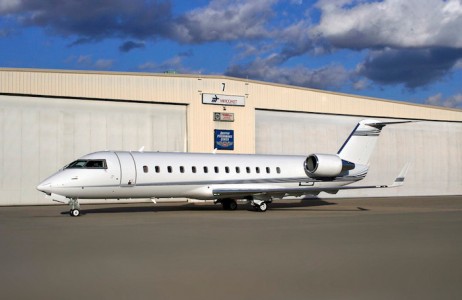

Exterior:

Painted March 2008. Overall Matterhorn white, dark and light blue accent stripes run from nose to tail.

Interior:

  • Originally completed by Midcoast Aviation; March 2008.
  • The cabin features a twelve (12) place executive interior configuration.

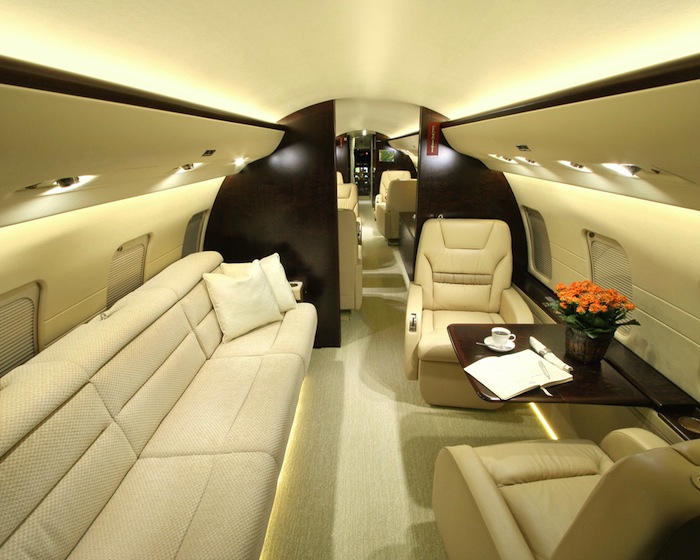

  • Forward cabin features four (4) club seats.

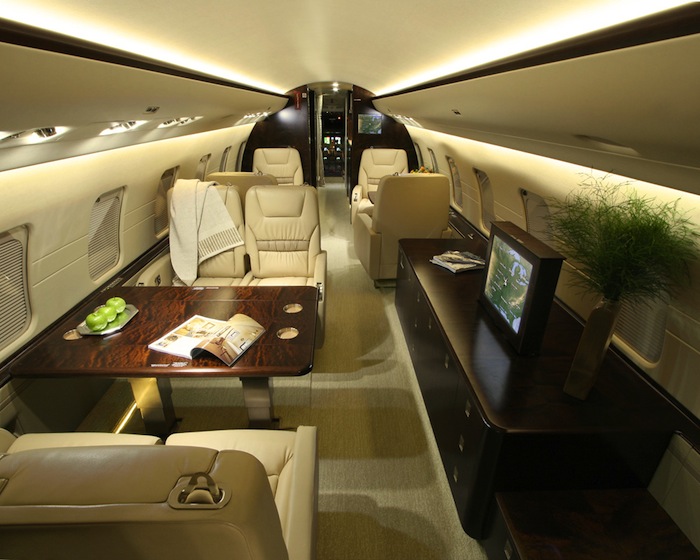

  • The mid cabin has a four (4) place conference group on the left with a manually operated – hi-low table, opposite is a credenza with storage as well as a 20″ LCD pop-up monitor.

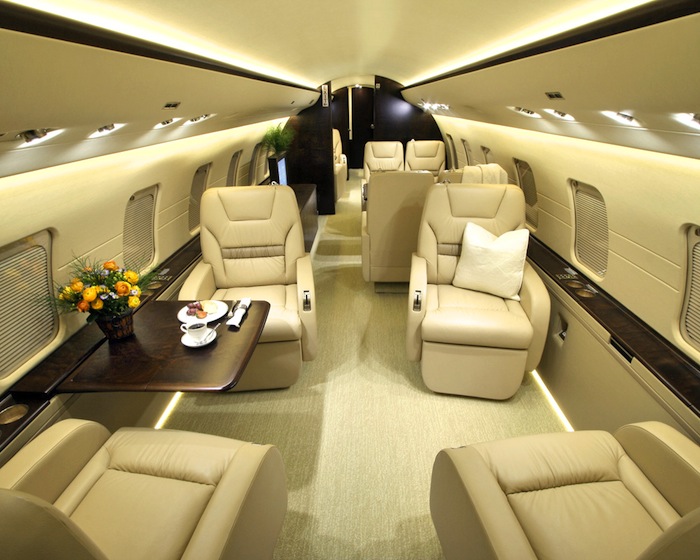

  • The aft cabin has a two (2) place divan opposite two club seats.
  • The lower sidewalls are a cream colored Ultraleather.
  • The carpet is light tan.
  • Seats are covered with a cream colored leather, the divan with an off white burl material, metal accents are brushed aluminum, woodwork is dark with a matt finish.

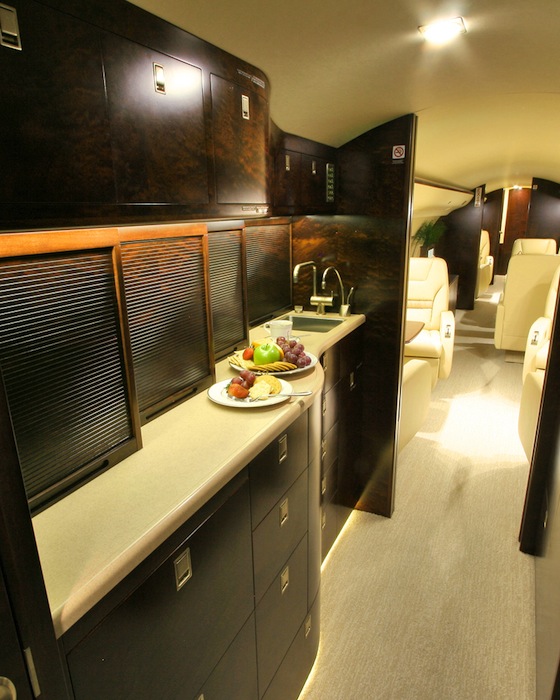

  • Galley features a coffee maker, high temperature warming oven and microwave oven.

Weights:

  • Gross Weight (Ramp): 53,250 lbs
  • Max Take Off Weight: 53,000 lbs
  • Max Landing Weight: 47,000 lbs
  • Max Zero Fuel Weight: 44,000 lbs
  • Empty Weight: 33,653 lbs
