Airframe: 8,729.4 Hours 5,250 Cycles
CAMP Enrolled
RVSM Qualified
Honeywell HAPP Avionics Protection Plan
Fresh Gear Overhaul and 60 Month Inspection June 2011
Complete Soft Goods and Refreshed Paint Stripe June 2011
Part 135 Certification
Engines:
|
Left & Right |
| Description |
General Electric CF34-3A |
| Engine Serial Number |
350237 |
350245 |
| Engine Time Since New |
8,005.3 Hours |
8,262.8 Hours |
| Engine Cycles Since New |
5,397 Cycles |
5,606 Cycles |
| Program Coverage |
JSSI Maintenance Program |
APU:
| Description |
Honeywell GTCP 36-100E |
| APU Serial Number |
P-264 |
| APU Time Since New |
6,853 Hours |
| Program Coverage |
MSP |
Avionics:
The Challenger 601-3A is equipped with dual Collins Pro-Line II avionics suite. A general summary of this aircraft’s Collin’s Pro-Line II avionics suite is as follows:
- Dual Honeywell SPZ-8000 Digital Autopilot/ Integrated Flight Control Systems
- Dual Collins Pro Line II Avionics
- Honeywell Primus 650 Weather Radar with Lightning Detection
- Triple Collins VHF-22C Communication Transceivers With 8.33 Spacing
- Dual Collins VIR-32C Navigation Receivers with FM Immunity
- Dual Collins DME-42 Distance Measuring Equipment
- Dual Collins TDR-94D Mode S Transponders
- Dual Collins ADF-462 Automatic Direction Finders
- Honeywell AA-300 Radar Altimeter
- Dual Honeywell Digital Air Data Computers
|
- Dual Collins HF-9000 High Frequency Radios with SELCAL
- AFIS Airborne Flight Information System
- Honeywell TCAS II Traffic Collision Avoidance System with Change 7 & EFIS Display
- Honeywell EGPWS Enhanced Ground Proximity Warning System with EFIS Display
- Dual Honeywell NZ-2000 FMS Flight Management Systems, Each with 12-
Channel GPS Global Positioning System Receivers (Software Version 5.2)
- Triple Honeywell Laseref IRS Inertial Reference Systems
|
Cabin Electronics:

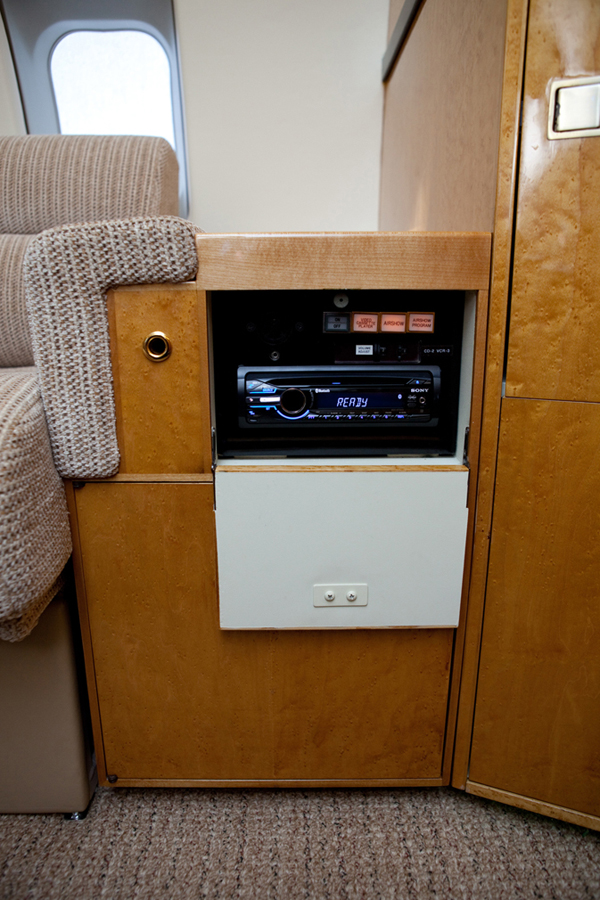

Cabin Entertainment System Featuring:
- Forward 15” Flat-Plate Bulkhead
- Video Monitor
- Airshow Genesys In-Flight Passenger Information System

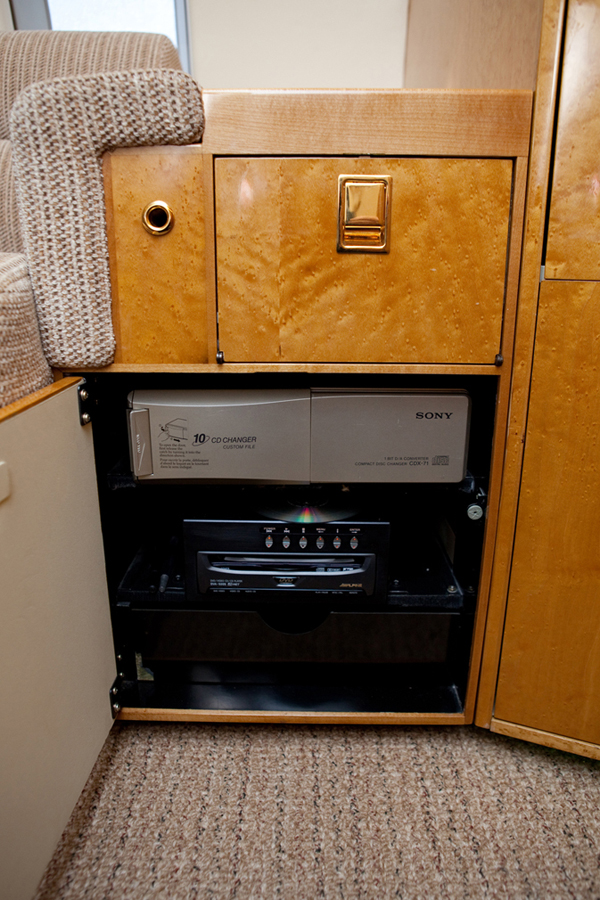

- 10-Disc Compact Disc Stereo System
- Bose Cabin Speakers
|
Cabin Phone System Including:

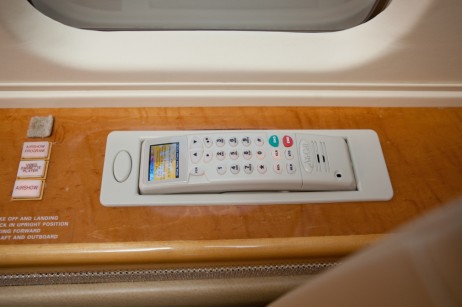

- Aircell DL-900 Phone and Broadband Internet, Cabin and Cockpit Handset Installed June 2011
- 115-Volt Outlets For Laptop Computers
- DVD Player
|
Additional Equipment:
- Fairchild A100A CVR Cockpit Voice Recorder
- DeVore Tel-Tail Logo Lights
- Remote Engine Oiling System
- Airshow Genesys Passenger Information System (One Cabin & One Cockpit Monitor)
|
- Nose Compartment Storage Area
- Aft Fuselage Stowage Area
- Stowable Foul Weather Entry Canopy
- Tow Bar and Ladder In Tail Storage Area
- Three Additional Cabin Windows
|
Exterior:

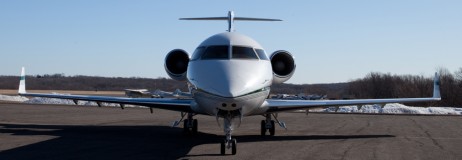

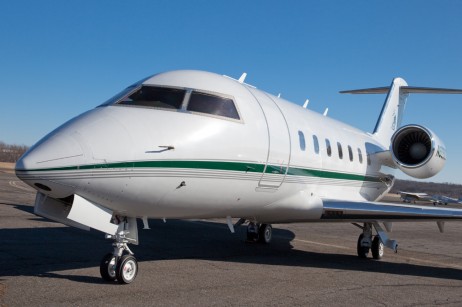

Overall Matterhorn White with green and silver accent striping.
Interior:

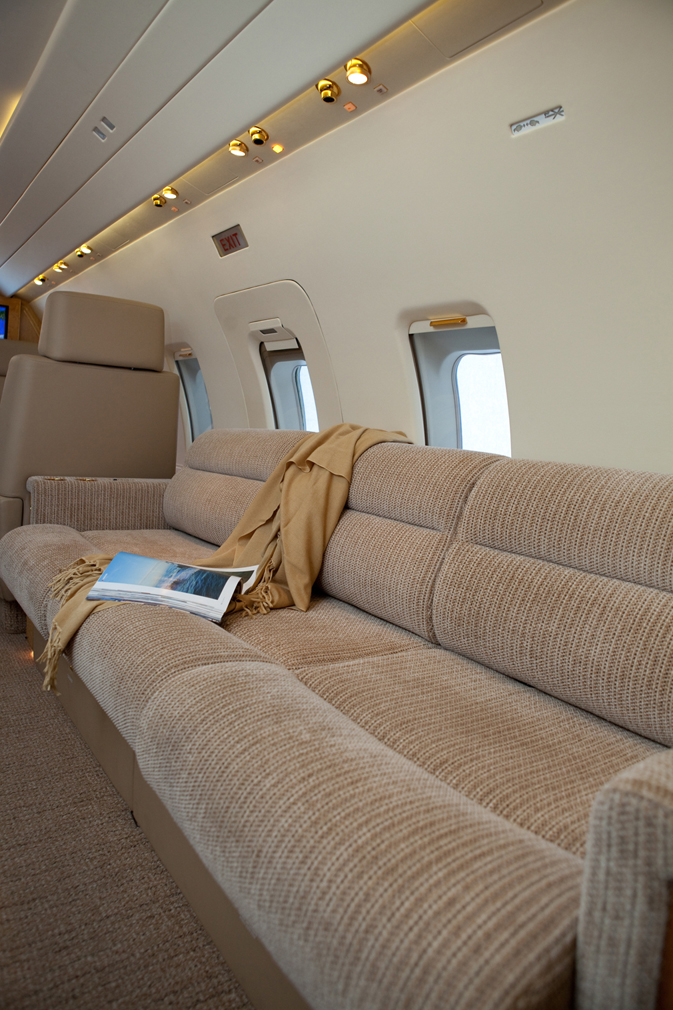

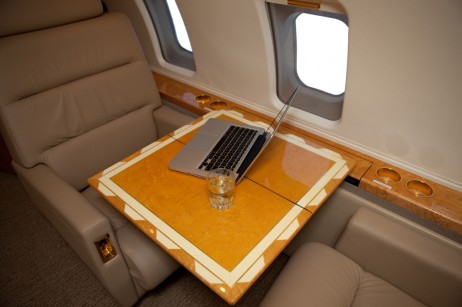

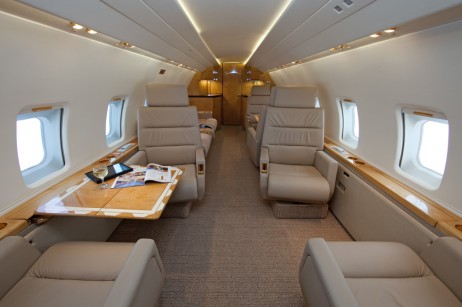

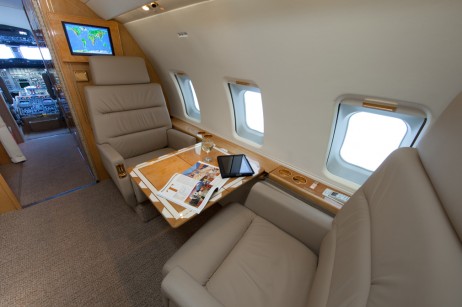

10-passenger configuration features a forward four (4) place club and an aft, RS, four (4) place divan opposite a two (2) place club. The aircraft’s aft galley provides passengers with nearly four additional feet of cabin length compared to the traditional forward galley layout. Soft dove gray leather and neutral fabric upholstery is complemented by light wood cabinetry and gold hardware.
Forward Lavatory:

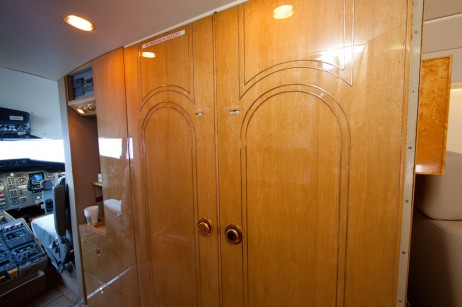

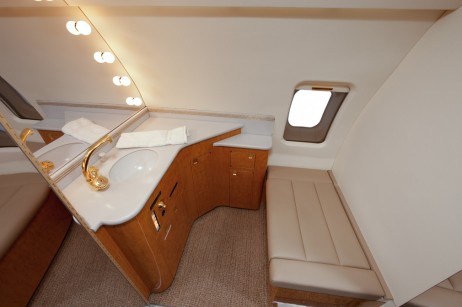

The forward, fully enclosed lavatory, which can serve as a full-cabin-width dressing area, features a mirrored vanity, sink, closet, and window.

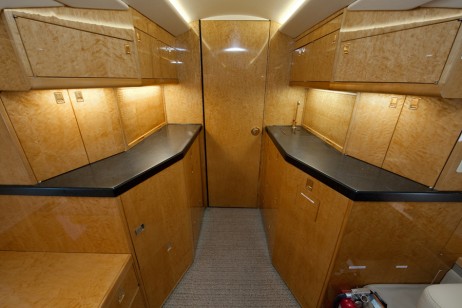

Galley Items:
- Wine Storage
- China / Crystal / Flatware Storage Provisions
- Microwave Oven
|
- “Hot Cup” Warming Unit
- Coffee Maker
- Ample Catering / Snack / Beverage / Ice / Refuse Drawers
|
