Bombardier Global 5000 · # 9226 | Jetcraft Corporation

Airframe:

672 Hours; 263 Landings (As of 31 October 2011)
Entry to Service Date – 14 October 2007
MTOW Increase for Increased Range (92,500 lbs.)
Still Under Factory Warranty
Bombardier Smart Parts Plus
Operations at Airports with Maximum Weight Restrictions

Engines:

	Left	Right
Description	Rolls Royce BR710-A2-20	Rolls Royce BR710-A2-20
Engine Total Time Since New	672 Hours	672 Hours
Engine Cycles Since New	263 Cycles	263 Cycles
Engine Program	JSSI	JSSI

Auxiliary Power Unit:

Description	Honeywell RE220 (GX)
APU Program	JSSI

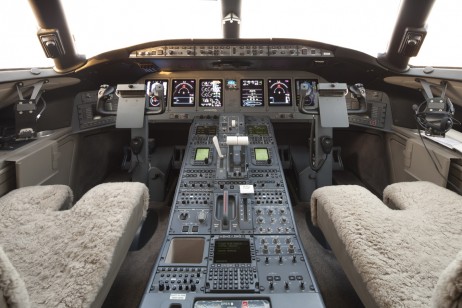

Avionics:

This Global 5000 Features a Fully Integrated Honeywell Primus 2000XP Avionics Suite:

Six (6) 8×7 inch Color CRT Display Units (DU-870) – Two (2) Primary Flight Display PFD, Two (2) Multifunction Display MFD, One (1) EICAS and One (1) System Synoptic Display
Triple Honeywell RCZ-833 Integrated Communication Unit with 8.33 Separation
Triple Honeywell NZ-2000 Navigation Computer, Dual Global Positioning System GPS, Triple Digital
Dual Primus II RM-855 Integrated Radio Management Units (RMU)
Inertial Reference System Honeywell LASEREF IV
Traffic Alert and Collision Avoidance System: Collins TCAS-2000
Enhanced Ground Proximity Warning System: Honeywell EGPWS
Thales/Sextant Heads-Up Display
Bombardier Enhanced Vision System
Electronic Pilot Checklist
SATCOM System and High Speed Link (SAT-6100)
Teledyne Datalink System (ACARS)
Lightning Sensor System: Honeywell LSZ-860
Central Aircraft Information Maintenance System (CAIMS)
Cabin Communication System (CCS) Aerocom A3000B and ICS 100 Telephone System
Integrated Electronic Standby Instrument (IESI)
Three IC-800 Integrated Avionics Computers (IAC)
Flight Data Recorder (JAR OPS Compliant)
Cockpit Voice Recorder (SSCVR)
Primus 880 Weather Radar
Artex ELT with NAV Interface Unit
Dual HF-9000 High Frequency (HF) Communications System
Autothrottles
Full Authority Digital Engine Control System (FADEC)
Quad Ameteck DA-180 Data Acquisition Units
3rd VHF Comm (RCZ-833)
Dual Collins Radio Altimeters (ALT-4000)
Coltech SELCAL
Triple AZ-840 Micro Air Data Computers (MADC)

Other Avionics/Electrical Systems:

Satellite Communication System (SATCOM)
Three (3) Channels Aero H+ (2 Voice Channels and 1 Data Channel). Data Channel Supports ACARS/Maintenance Functions
One (1) Single-Channel Iridium-Based Airborne Telephone System
PBX (Aerocom 3000B) Integrates Cabin Voice Communication Allowing Common Access from Handsets
Four (4) Passenger Cabin Handsets (One is Cordless). One Handset in Cockpit
Single Channel High-Speed Data System (HST-2100) Offers Data Transfer of up to 64 kbps
Autopilot Emergency Descent Mode
BFG Electronic Flight Bags
Cabin Power Bus Disconnect
Illuminated Approach Chart Holders for Pilot and Co-pilot
Miltope Cockpit Printer
Flight Observer Seat Audio Panel Located on the Cockpit Pedestal
Ground Service Cabin Power
One (1) Power Converter (3500 VNI15V/60Hz)
Additional TRU and PDEs
EICAS: “Door Open” Annunciation
Cockpit Analog Telephone Jack and Loose Equipment Telephone Handset (Back-up Phone)
115 VAC GFI Electrical Outlets Located as follows:
A Dual Outlet in Each Lavatory and in RH Galley, LH Galley Annex, Credenza, LH Entrance
Enclosure
A Single Outlet at Each Single Scat and Outboard Double Seats
A Single Outlet Located Adjacent to Each Cockpit Seat

Cabin Electronic Systems (CES) – Rockwell Collins:

Global Office:

10/100 Base T Ethernet Local Area Network (LAN) with Connections for Laptops and Other Portable Devices
Plain Paper, Fax/Printer/Scanner
RJ-45 LAN Interface at Each Single Seat, Outboard of Each Double Seat Grouping and in the Cockpit
Wireless Local Area Network (LAN)

Cabin Utilities / Control and Display:

One (1) 10.4-inch Galley Touch Screen Control Monitor
One (1) Cockpit Touch Screen Equipment (Co-Pilot Side)

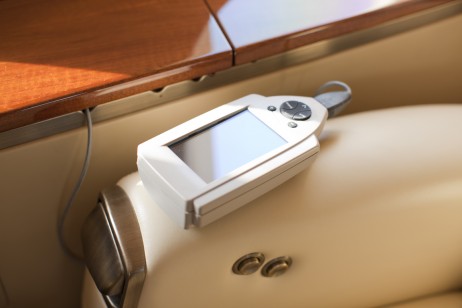

Passenger Control Units (PCU), Entertainment Switch Panel and Local Switch Panels

Power Distribution of Aircraft AC and DC Power

Entertainment

Two (2) Multi-Region DVD Players
One (1) Multi-Disk CD Player
Two (2) Bulkhead-Mounted 21.3-inch LCD Video Monitors
High-Quality Cabin Speaker/Subwoofer Arrangement (10 Speakers and 4 Subwoofers)
Eight (8) Receptacles for Plug-In Monitors
Passenger Headphone Distribution System
Airshow ASXi Interactive In-Flight Information System (Moving Map)

Cabin Services

Cabin/Lavatory Call System
Passenger Address System
Passenger Briefing System
lCG ICS-IOO Iridium Telephone System

Maintenance and Diagnostics

Central Maintenance Function for Applicable Integrated Cabin Systems
Diagnostic Reports Viewable on the Galley Touch Screen Monitor or Other Connected Devices. A Security Access Protocol Prevents Unauthorized Access

Miscellaneous Installations and Equipment:

Aircraft Miscellaneous Equipment:

Additional Refuel-Defuel Panel in the LH Entrance Enclosure
Airstair FWD Handrail Extension
Common Keyed Panel Locks (External Door Panels)
Aft Equipment Bay Storage Box (60 lb. Maximum)
Semi-Recessed Jeppesen Manual Storage Box at Cockpit Entrance
Towbar and Assembly Storage (Towbar is Loose Equipment)
Two (2) RHS Additional FWD Cabin Windows (in FWD Lavatory and Behind RH Galley)
Two (2) 7-inch Airstair Gear Pin Storage Box
External Baggage Door Lock Override
Catwalk Battery Access
Multi-Purpose Aft Equipment Bay Access Ladder
Rain Canopy

Cockpit Miscellaneous Equipment:

Two (2) Engraved Maglite Rechargeable Flashlights
Two (2) Roller Screens
Two (2) Writing Pad holders
Two (2) Storage Pouches on Each Side Console
One (1) Side Console Storage Bin (Former Lasertrak Location)
Protective Smoke Goggle in Pouch
Cockpit Footrest (Retained from Factory)
Cockpit Bulkhead Air Deflector

Galley Miscellaneous Equipment:

10-Cup, Manual-Fill Coffee Maker (TIA Model 16(3)
Espresso Coffee Maker, Manual Fill – Aerolux (AL-EXI5-2GGE-17)
Chiller-Cooled Cold Food Storage
One Divided Ice Drawer with Overboard Drain
High Temp Oven with Digital Controller (TIA Model 1545-3)
0.7 Cubic Feet Microwave Oven (TIA)
Note: The China, Crystal and Flatware are Customer Supplied. Passenger Cabin Miscellaneous Equipment

Passenger Cabin Miscellaneous Equipment:

Electrically-Operated Accordion-Style Window Shades
Eight (8) Side Ledge Storage Boxes – One at Each Single and Double Seat Location
Additional Aft Cabin Window on the RHS
Wood Veneered PSU Handrail
Enhanced Sound Proofing Shell

Loose Equipment:

Two (2) Plug-In 10.4″ Touch Screen Monitors
Eight (8) Throw Pillows
Four (4) Drink Holder Covers for Mid-Cabin Hi-Low Conference Table
Lasertrak™ Unit (Replaced by 3rd FMS)
Standby Analog Handset

Spares:

One (1) Cabin Spare Carpet (FS 250 to FS 799)
Two (2) Drink Holder Covers for Mid-Cabin Hi-Low Conference Table

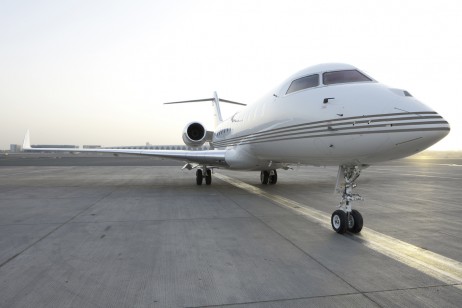

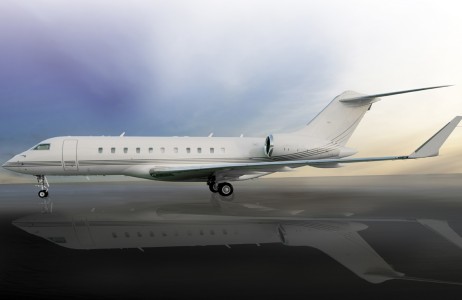

Exterior:

Overall White with Gray Stripes Accents. New Stripes, November, 2011.

Interior:

Interior Updating in Progress, See New Materials Board. Executive Thirteen (13) Passenger Configuration Laid-Out as Follows:

Entrance Area:

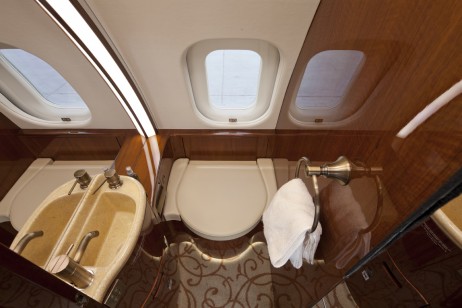

RH FWD Lavatory: Vacuum Toilet, Vanity, Sink and Cabin Window
LH Entrance Enclosure: Cockpit Flight Observer Seat (Flight Observer Seat), Coat Rod, Storage Areas and Crew Oxygen Mask

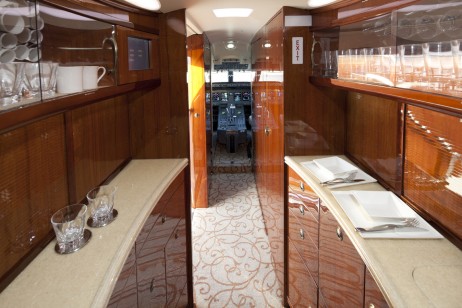

RH Galley: Refer to List Above for Specifics of Equipment
LH Galley Annex with: 10.4″ Touch Screen Control Panel
FWD Cabin Bulkheads with LH Sliding Pocket Door (Separates Entrance Area from Cabin)
Crew Plaque
Entryway Acoustic Curtain
Galley / Entrance Area Below Carpet Floor Mat Heaters

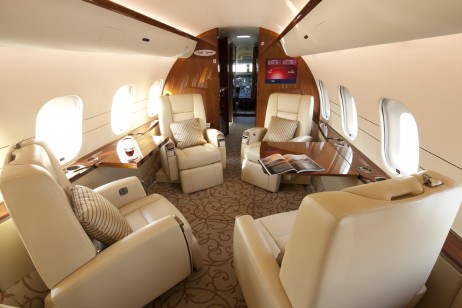

Forward Cabin:

RH Side (Zone lA): One (1) Pull-Out Table and Two (2) Wide, Single Executive Seats that Feature: Integral Headrest, Recliner Footrest, Berthing/Recline, Track and Swivel and Electric Inflatable Lumbar
LH Side (Zone IB): One (1) Pull-Out Table and Two (2) Wide, Single Executive Seats that Feature: Integral Headrest, Recliner Footrest, Berthing/Recline, Track and Swivel and Electric Inflatable Lumbar
Two (2) Magazine Racks – One (1) on Each RHS and LHS FWD Bulkheads

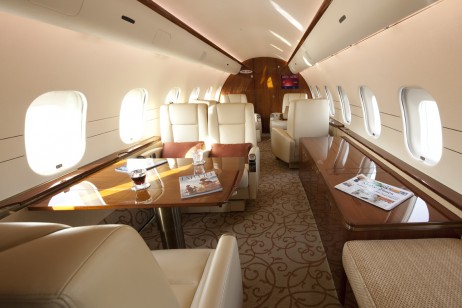

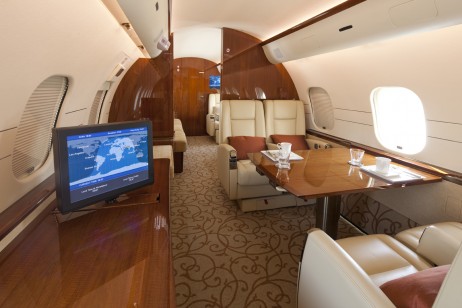

Mid Cabin:

RH Side (Zone 2A): Credenza Cabinet Including Entertainment Equipment and Fax/Printer (see Entertainment Systems Below). Low Cabinet under Emergency Exit for the Emergency Equipment
LH Side (Zone 2B): One (1) Manually-Operated Hi-Low Conference Table and Two (2) Sets of Double Seats that Feature: Integral Headrest, Recline, Track and Swivel (Swivel on Inboard Chairs Only) and Electric Inflatable Lumbar
Mid Cabin Bulkhead on LHS with Pocket Door and EICAS Annunciation and a RHS Removable Bulkhead (Attached on the FWD Divan End Cabinet in zone 3). A Conversion Kit will be Included Should the Operator Choose to Disabled the Door which is a Requirement to Comply with FAR PART 135 Operating Rules. A Removable Curtain and Permanent Curtain Track will be Installed

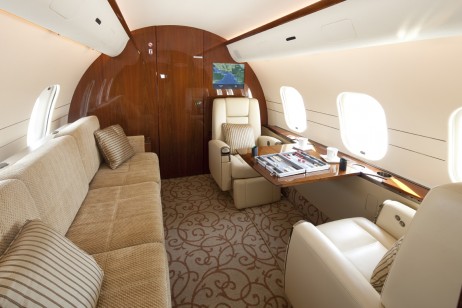

Aft Cabin:

RH Side (Zone 3A): Three-Place 16G Divan Which Features: Berthing and Storage. Two (2) End Cabinets, Each Features: Two (2) Drink Holders, Storage and CES Interface
LH Side (Zone 3B): One (1) Pull-Out Table and Two (2) Wide, Single Executive Seats that Feature: Integral Headrest, Recliner Footrest, Berthing/Recline, Track and Swivel, and Electric Inflatable Lumbar

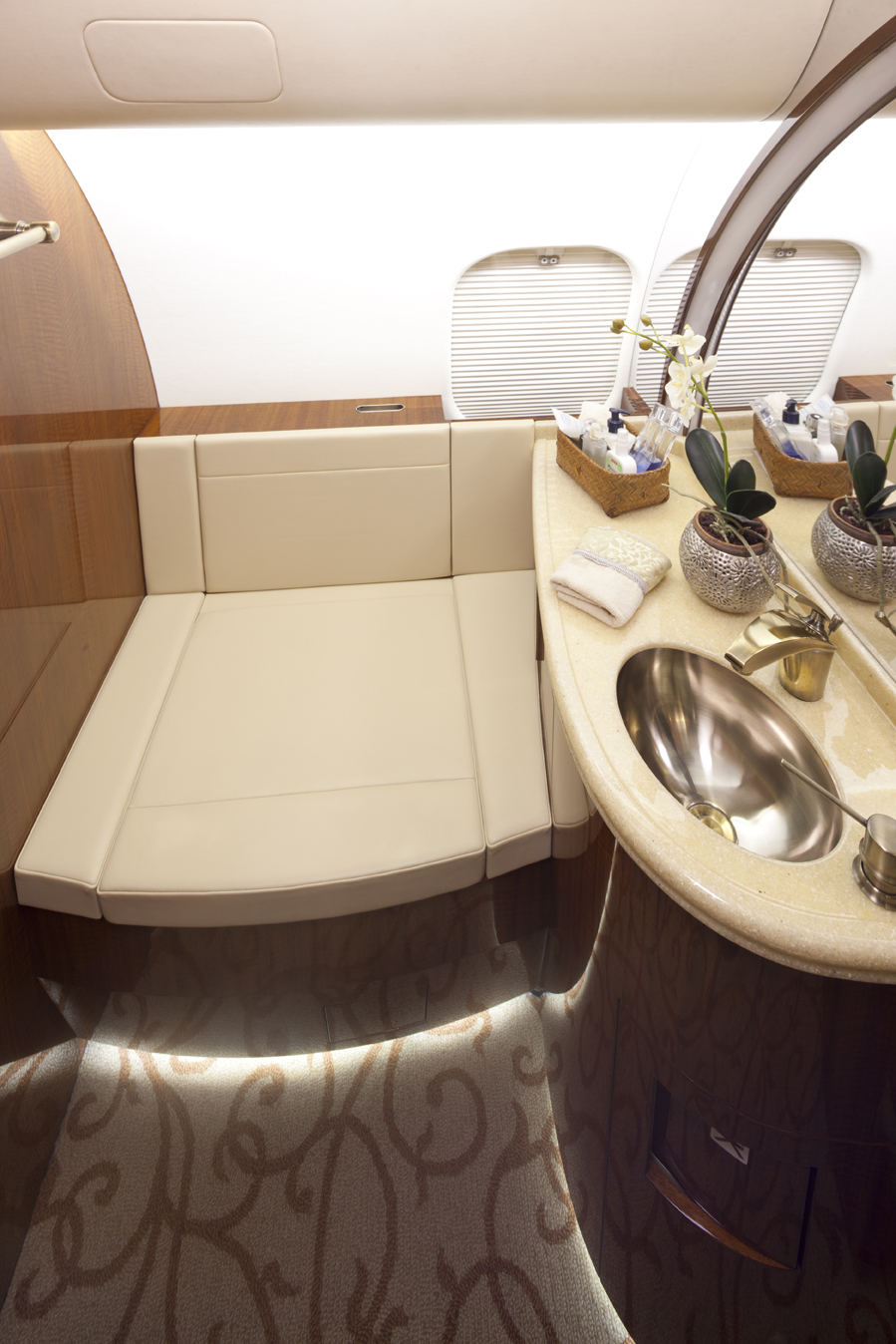

Aft Lavatory Zone:

Aft Cabin Bulkheads and Hinged Door
Vacuum Toilet
Vanity Cabinet with Miscellaneous Storage
Wardrobe and Storage Cabinet Featuring Adjustable and Fixed Shelving

Baggage Compartment Area:

Approximately 158 Cubic Feet
Two (2) Fold-Down Shelves
Two (2) Hang-Up Bars (One Swings Down to Stow)
Storage FWD and Aft of the ACPC Enclosure and FWD of the Baggage Compartment Door, Including Removable Coat Rods, Adjustable Shelves and Restraint Net

Oxygen System:

Factory-Installed EROS MF-IO Full-Face Masks are Retained for the Pilot and Co-Pilot
Puritan Bennett “Sweep-On” 2000 Half Masks on Pilot and Co-Pilot’s Bulkheads
Eros MC-20 Half Mask and MXG Goggles at Flight Observer Seat Located in the LH Entrance Enclosure
Oxygen Drop Boxes as Required in Main Cabin as well as Galley, Lavatories and at the Flight Observer Seat
Two (2) Therapeutic Oxygen Outlets in Passenger Cabin (RHS)

Environmental Control System:

Passenger Control of Two (2) Cabin Temperature Zones (+/- 2 Degrees Celsius) Around Master Control Setting
Entry Area Heater
Cabin Air Ice Filter Assembly

Potable Water System (PWS):

Re-Circulating Water System with Dual Pumps (for Redundancy) and UV Filter System
Heated Hose Assemblies and Component where Appropriate for Freeze Protection
Pressurized Lines and Components are Installed within Shrouds to Protect Critical Aircraft Systems
Single Exterior Servicing Port and Manual Internal Fill Capability
Single 24.7 Usable US Gallons Water Tank

Water System:

Single Waste Tank (16 Usable US Gallons) that Services Two-Vacuum Toilet System (FWD and Aft Lavatories)
The Vacuum Waste System Utilizes the Pressure Differential When the Aircraft is Above 16,000 ft
A Vacuum Generator is Used to Generate Pressure Differential When the Aircraft is Below 16,000 ft. or on the Ground

Lighting:

LED Interior Lighting
Exterior Ground Service Lights (Pylon Lights)
Wing Tip Taxi Lights
Pulse Landing Light System
Wheel-Well Maintenance Lights (Factory Installed)
Logo Lights
Services Lights Timer Override
Exterior Service Panel Lighting
Illuminated Ordinance Signs
Floor Level Accent Lighting
