Q4 2013 Delivery Position
Limited Edition ‘LE’ Package
Increased MTOW 92,500 lbs
EU-OPS1
New Manufacturer’s Warranties
Bombardier Montreal Completion
Engines: Rolls Royce BR710A2-20
APU: Honeywell RE220 (GX)
Avionics:

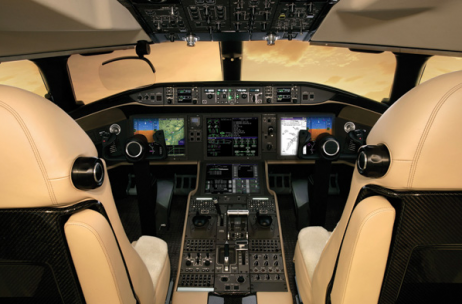

This Global 5000 is equipped with the Global Vision Flight Deck including Enhanced Vision System, Synthetic Vision for Situational Awareness and featuring a fully integrated Rockwell Collins Pro Line Fusion Avionics Suite.
- Four (4) tube EFIS consisting of 14″x 11″ landscape active matrix LCD displays
- Triple Integrated Flight Management System (FMS)
- Triple VHF-4000 Radios
- Dual HF Radios
- Dual SELCAL system
- Datalink Capability
- Three (3) Cockpit Audio Control panels
- Two GPS synchronized or manual Clocks
- Cockpit Voice Recorder (120 min)
- Flight Data Recorder (25 hr)
- Emergency Locator Transmitter (ELT)
- Dual Electronic Checklists and Manuals for Paperless Operation
- Class II Electronic Flight Bags – Two (2) Detachable Multifunction Touch Screen 8.4 “ DU and AIU installed
- LCD Head-up Flight Display System (HUD)
- Enhanced Vision System (EVS)
- Integrated Flight Information System (IFIS)
|
- Synthetic Vision System (SVS)
- Integrated Electronic Standby Instrument (IESI). Three in one.
- Triple Digital Air Data Computers (MADC)
- MultiScan™ Weather Radar
- Triple Inertial Reference Systems (IRS)
- Dual Automatic Flight Control System (AFCS)
- Two (2) DME Transceivers
- Two (2) Digital ADF Receivers
- Interface
- Engine Indication/Crew Alerting System (EICAS)
- Dual 24 channel GPS WAAS Receivers
- Dual VHF Nav Receivers
- Traffic Alert and Collision Avoidance System (TCAS) with ADS-B Transponder
- Two Radio Altimeters
- Onboard Maintenance System (OMS)
- Terrain Awareness Warning System (TAWS)
- Surface Management System (SMS-5000)
|
Additional Avionics/ Published Options:
- Increased MTOW 92,500 lbs
- Sunshield (Cockpit)
- Noise Cancelling Headsets (Crew – Qty 3)
- Winglet Viewing Mirrors (cockpit)
- Enhanced Sound Proofing (Shell)
- Mid Cabin Bulkhead c/w Manual Sliding Frangible Door and EICAS Annunciation Half Bulkhead RHS
- External markings below left wing
- Bilingual internal & external placards
- Refuel/Defuel Control Panel
|
- Quick Access Recorder
- Certificate of Airworthiness for export to Austria
- Cockpit Printer
- Reduced Vertical Separation Minimum (RVSM)
- Lower Directional TSS Antenna
- Rockwell Collins Lightning Detection System (LSS)
- Operations at Airports with Max. weight Restrictions
|
Additional Equipment and Options:
- Main Entry Door, Aft Handrail Extension
- APU Hour Meter
- Aircraft Identification Plate (Qty 3)
- Enviroclean System (for Vacuum toilet)
- LH Entrance Storage Drawer
- Airshow: Static Logo, Location Indicator, World Map, Worldwide Photographic Map, Day-Night Map with Times Zone and World Explorer Guide
|
- Two (2) Wide Single Seats (zone 3B)
- Folding Legrest (Deployment Type)
- 16G Three Place Divan
- Aesthetic Side Covers on Main Entry Door
- Electric Window Blind Shipset (Accordion type)
- IPod Cradle Installation (Qty 2) with Audio/Video Capability
- Two (2) 10.6 “ Plug-in Touch Screen HD Monitors
|
Cabin Technology, Entertainment, and Communications System:
- Rockwell Collins Cabin Electronic System (CES)
- ARINC 781 SATCOM (SAT-2200) with Immarsat
- Iridium Telephone System (ICG) Aerocom 3000 CTU
- Telephone handsets (Iridium & SATCOM)
- Airshow ASXI Interactive Flight Information System
- Global Office
- Local Area Network (LAN)
- Wireless Capability
- Cabin Printer/Copier/Scanner
- Passenger address system
|
- Two (2) bulkhead mounted 24” HD monitors
- Eight (8) monitor receptacles for plug-in touch-screen HD monitors
- 10.6” Touch-screen HD galley monitor
- Two (2) IPods
- Two (2) Cockpit and Four (4) touch-screen wireless Passenger Control Units
- Four (4) simultaneous independent Blu-ray CD/DVD/MP3 Players
- High quality cabin speakers and subwoofers (10 Speakers, 4 Subs)
- Two (2) Blu-ray Disk Players
- Cabin Amplifier
- Cabin/Lavatory call system
|
Exterior:
Custom paint scheme can still be specified. One (1) single color, non-metallic base paint with two (2) stripes shown on fuselage nacelles and winglets.
Includes:
- Original Bright Work highly polished
- Paint inside Main Landing Gear Wheel Well Doors (Qty 2)
- Paint inside of Outboard Main Gear Doors & Nose Gear Doors (Qty 5)
- Polish on Latches of Engine Cowlings, Rear Bay Door Handle, Surround of Main Door
Interior:
Floorplan #3: This Global 5000 is configured for thirteen (13) passengers and features the following:
- Forward galley and lavatory
- Forward four (4) place club with wide seats and pull-out tables
- Mid cabin four (4) place conference grouping with hi-lo table opposite of a credenza
- Aft cabin Dual three (3) place 16G divans
- Aft lavatory and wardrobe with access to aft baggage compartment
Galley Features:
- One (1) Aerolux (Nespresso) Manual Fill Espresso Coffee Maker
- One (1) TIA High Temp Oven
- One (1) TIA Microwave Oven
- Exhaust fan to duct odors
- Sealed waste container
- Stainless steel sink, faucet & sink cover with cutting board
- Two (2) pull-out work surfaces w/cutting boards
- Conditioned air
- Countertop (LH & RH)
|
- One (1) Chilled Soda Can Drawer
- One (1) chilled storage compartment with three trays
- Divided ice / bottle storage drawer with overboard drain
- Miscellaneous Storage
- Electrical Outlets
- Lighting
- Crystal Storage
- Flatware and utensil storage drawer
- Five (5) China storage drawers
- Two (2) Tambour doors
|
Training:
| Pilots: |
- Type-Rating Course for two (2) qualified pilots
- Operational training for HUD/EVS systems
|
| Ground Maintenance: |
- Training for two (2) mechanics
|
| Flight Attendant: |
- Training for one flight attendant
|
Warranty Information:
| Airframe: |
- 5,000 Flight Hours or 60 Months
|
| Completion Work: |
- 2,000 Flight Hours or 24 Months
|
| EVS |
- EVS Sensor 60 Months or 2,000 Flight Hours
- Sapphire Glass 60 Months or 3,000 Flight Hours
|
| Primary Metal Structures: |
- 20,000 Flight Hours or 240 Months
|
| Engines: |
- Per Honeywell Manufacturers Warranty
|
Further Technical Data Available Upon Request
