2011 Bombardier Global 5000
Airframe:
28 Hours; 10 Landings Located in Montreal, Quebec
Far Part 135 Operations for flights < 10 hours of duration
Equipment requirements for JAR OPS1 Operations
LE Completion Package
Extended Range Option – MTOW 92,500 lbs
Engines:
|
Left |
Right |
| Description
Serial # |
Rolls Royce BR710-A2-20
TBD |
Rolls Royce BR710-A2-20
TBD |
| Engine Total Time |
28 Hours |
28 Hours |
| Engine Cycles |
11 Cycles |
11 Cycles |
| Engine Program Coverage |
Corporate Care Available |
| APU: |
Left |
Right |
| Description |
Honeywell RE220 [GX] Auxiliary Power Unit |
| Total Time |
50 Hours |
| Cycles |
11 Cycles |

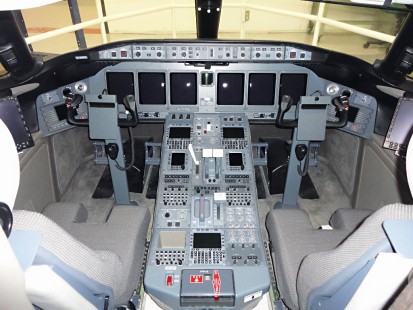

Avionics:
- Honeywell Primus 2000XP IFCS
- Electronic Flight Instrument System (EFIS)
- VHF Navigation – Dual VOR/ILS/MKR systems
- Dual Global Positioning System
- Triple Honeywell RCZ-833 w/8.33
- Dual HF communication
- SELCAL system
- ACARS Datalink system
- Dual Interphone system
- Emergency Locator Transmitter
- Collins TCAS-2000
- Airborne Data Link System (ADLS)
|
- Heads Up Flight Display (HUD)
- Flight Data Recorder
- Electronic Flight Bag – Class II
- Cockpit Voice Recorder
- Air Data System (ADS)
- Enhanced Ground Proximity Warning System (EGPWS)
- Autopilot Emergency Descent Mode
- Cockpit Touch Screen Equipment (CTSE)
- Cockpit Local Area Network (LAN) Connection
- Satellite Communication (SATCOM) System and High Speed Link (SAT-6100)
|
Additional Avionics Options:
- 3rd Flight Management System
- Cockpit Printer
- Lightning sensor – Honeywell LSZ-860
- Quick Access Recorder
|
- Crew Force Measuring System (FDR Upgrade)
- Electronic Pilot Checklist (OBDS)
- Standby Analog Handset and Associated Jack
|
Cabin Technology, Entertainment, and Communications System:
- Global Office
- LAN & WLAN
- Dual disk DVD Player
- Two (2) 24” LCD monitors
- One 10.4” galley touch screen control monitor
- iPod Cradle/Ports installation – FWD divan end cabinet
|
- LED based lighting technology throughout the cabin
- Airshow “ASXi” Interactive Flight Information System w/Network – Six Pack
- Iridium telephone system (ICS-100)
- Two (2) plug-in 10.4” touch screen monitors
|
Additional Options:
- Rosen Sunshield (Cockpit)
- CPDLC
- Electronic Window Blinds Shipset
- Power Converter Replacement (115V to 230V)
- Service Lights Timer Cabin Power Override System
- Rain gutter installation – main entrance
|
- Flight Crew Quick Donning Oxygen Masks
- Enhanced Sound Proofing (Shell)
- Logo Lights (Exterior)
- Combined Jacking Equipment Provisions
- Spare Nose Wheel Mounting Provisions in Aft Equipment Bay (includes one spare nose wheel)
|
Exterior:

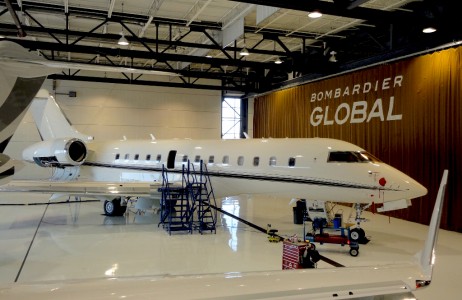

Overall Matterhorn white with a straight chocolate stripe across the fuselage.
Interior:

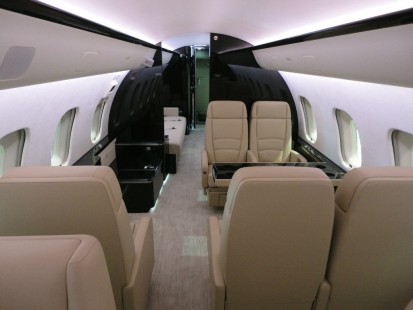

This Global 5000 is configured for fourteen (13) passengers and features the following:
- RH forward lavatory

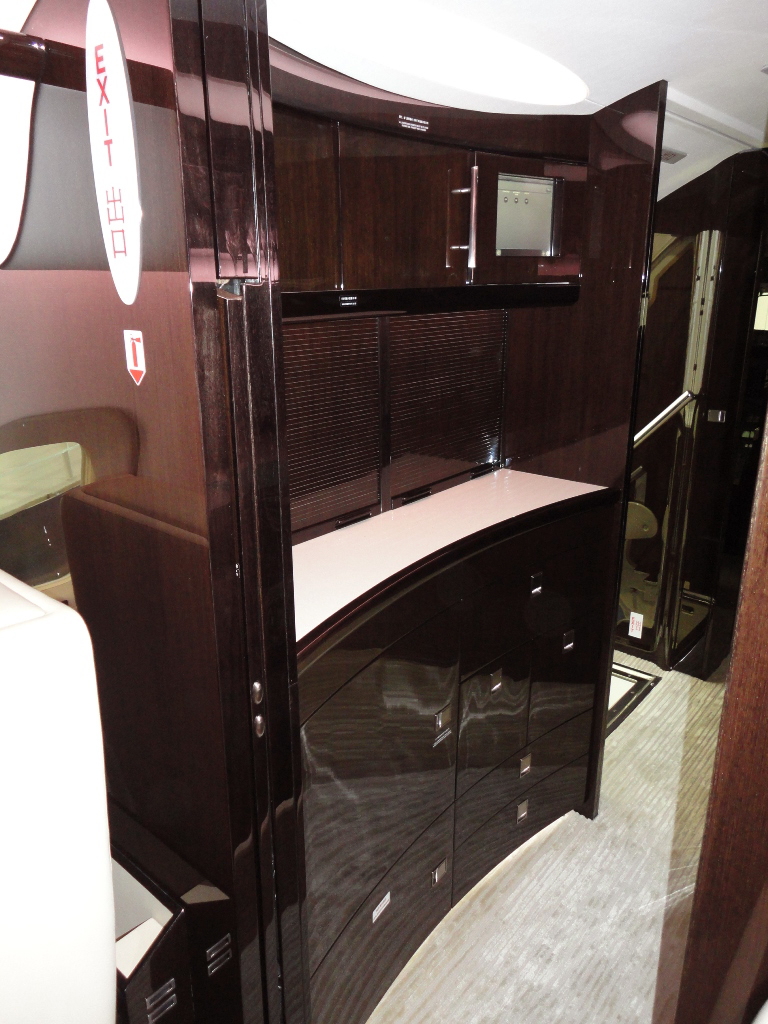

- RH galley and LH galley annex

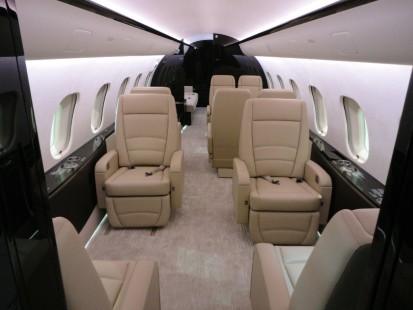

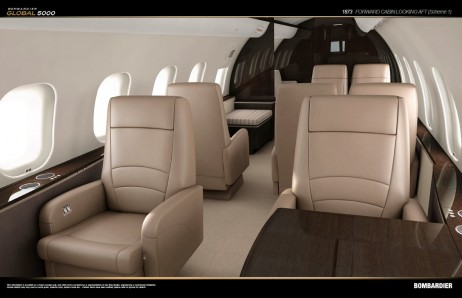

- Forward four (4) place wide club chairs with pull out tables
- Mid-cabin single seat with pullout table and a low cabinet/padded, unbelted seat
- Opposite four (4) place conference grouping with manual high-low conference table

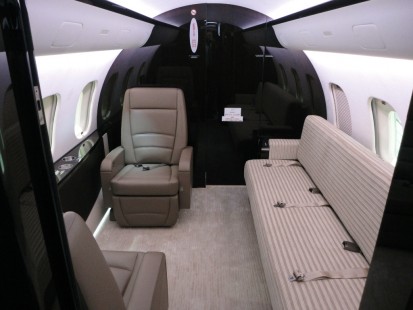

- Aft three (3) place berthable 16G divan with an opposite two (2) place club
- Aft lavatory/vanity with wardrobe and storage cabinet
Galley Features:
- Espresso Coffee maker, manual fill
- Cooled cold food storage
- One divided ice drawer
|
- High temp oven with digital controller
- Microwave oven
|
Warranty Information:
| Airframe: |
- 5,000 Flight Hours or 60 Months
|
| Completion Work: |
- 2,000 Flight Hours or 24 Months
|
| Primary Metal Structures: |
- 20,000 Flight Hours or 240 Months
|
| Engines: |
- Per Honeywell Manufacturers Warranty
|
Further Technical Data Available Upon Request
