Airframe: 4,650 Hours 1,843 Landings
Entry Into Service Date – November 2001
RVSM Compliant
Recently Refurbished Interior
Engines:
|
Left |
Right |
| Description |
Rolls Royce BR710-A2-20 |
| Serial # |
12227 |
12232 |
| Hours Since New |
4,650 |
4,650 |
| Cycles Since New |
1,843 |
1,843 |
| Coverage |
On Condition |
APU:
| Model |
Allied Signal RE220 (GX) Auxiliary Power Unit |
| Serial Number |
P-164 |
| Hours |
2,734 |
| Coverage |
TBD |
Avionics:

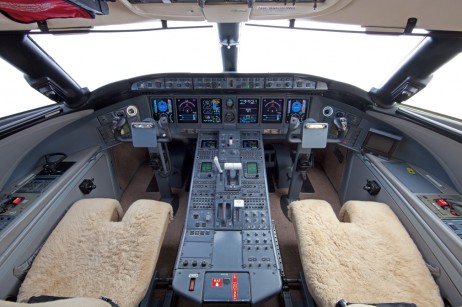

This Global Express is well equipped with a fully integrated Honeywell Primus 2000XP 6-Tube EFIS avionics suite generally summarized as follows:
- Six 8″x 7″ DU-870 Color EFIS Displays, 2 PFD / 2 EICAS / 2 MFD
- Dual Integrated Flight Management Systems(FMS) with Dual Global Positioning Systems (GPS)
- Triple HG-2001 Inertial Reference Systems
- Triple AZ-840 Micro Air Data Computers (MADC)
- Autothrottle System
- Full Authority Digital Engine Control System (FADEC)
- Engine Indication/Crew Alerting System (EICAS)
- Honeywell Autopilot
- Primus 880 Color Weather Radar
- Honeywell MCS6000 SATCOM System
- Allied Signal Mark V EGPWS
- Flight Data Recorder
|
- Triple IC 800 Integrated Avionics Computers (IAC)
- Dual Honeywell RCZ-833K Integrated COM/Ident Radios with Enhanced Mode ‘S’ Diversity Transponders
- Dual Honeywell RNZ-851 Integrated NAV Radios with VOR/ILS/MKR/ADF/DME (FM Immunity)
- TCAS II Traffic Alert and Collision Avoidance System with Change 7
- Dual Primus II (RM-855) Radio Mgmt. Units
- Dual Collins ALT-4000 Radio Altimeters
- Dual Collins HF-9000 HF Comm System
- Coltech CSD-714 SELCAL System
- Central Aircraft Information Maintenance System (CAIMS)
- Cockpit Voice Recorder
- Artex 406hz ELT
|
Avionics Options:
- CMC electronics CT-1000 EFB’s
- 3rd VHF Comm RCZ-833 (8.33 MHz)
|
- Lighting sensor system (SB-700-34-003)
|
Cabin Entertainment & Additional Features:
- Office in the Sky Option: (SB 700-23-003)
- MagnaStar C-2000 Airborne Telephone System with five (5) handsets
- Airborne Teledyne Datalink (S/B 700-23-005)
- Two (2) CD/DVD players, single video cassette player
- Two (2) 18” LCD displays
- Securaplane systems tail camera and lower fuselage quad camera
|
- Airshow Genesys
- Humidification system
- Jumpseat
- First aid kit
- Printer/fax machine
- 115 V 60hz power outlets throughout
- Eight (8) 6.5” Plug in monitor locations throughout
- Four (4) 6.5” monitors
|
Interior:
Recently Refurbished! This Global Express features a fireblocked fourteen (14) passenger forward galley configuration consisting of the following:

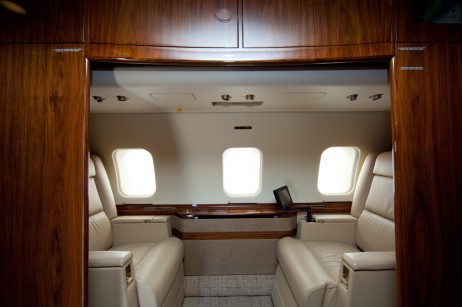

- Forward crew rest area with two (2) seats

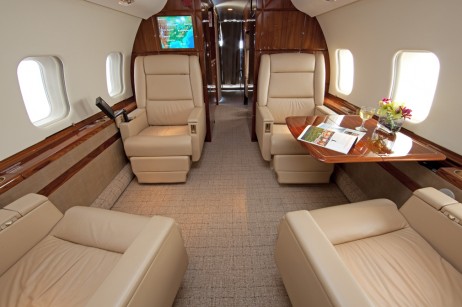

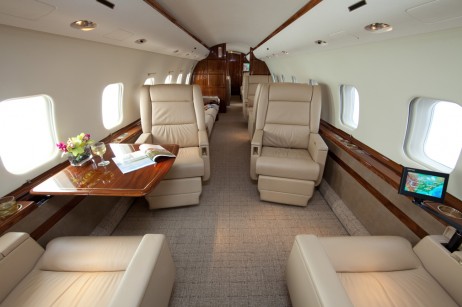

- Forward four (4) place club with foldout tables

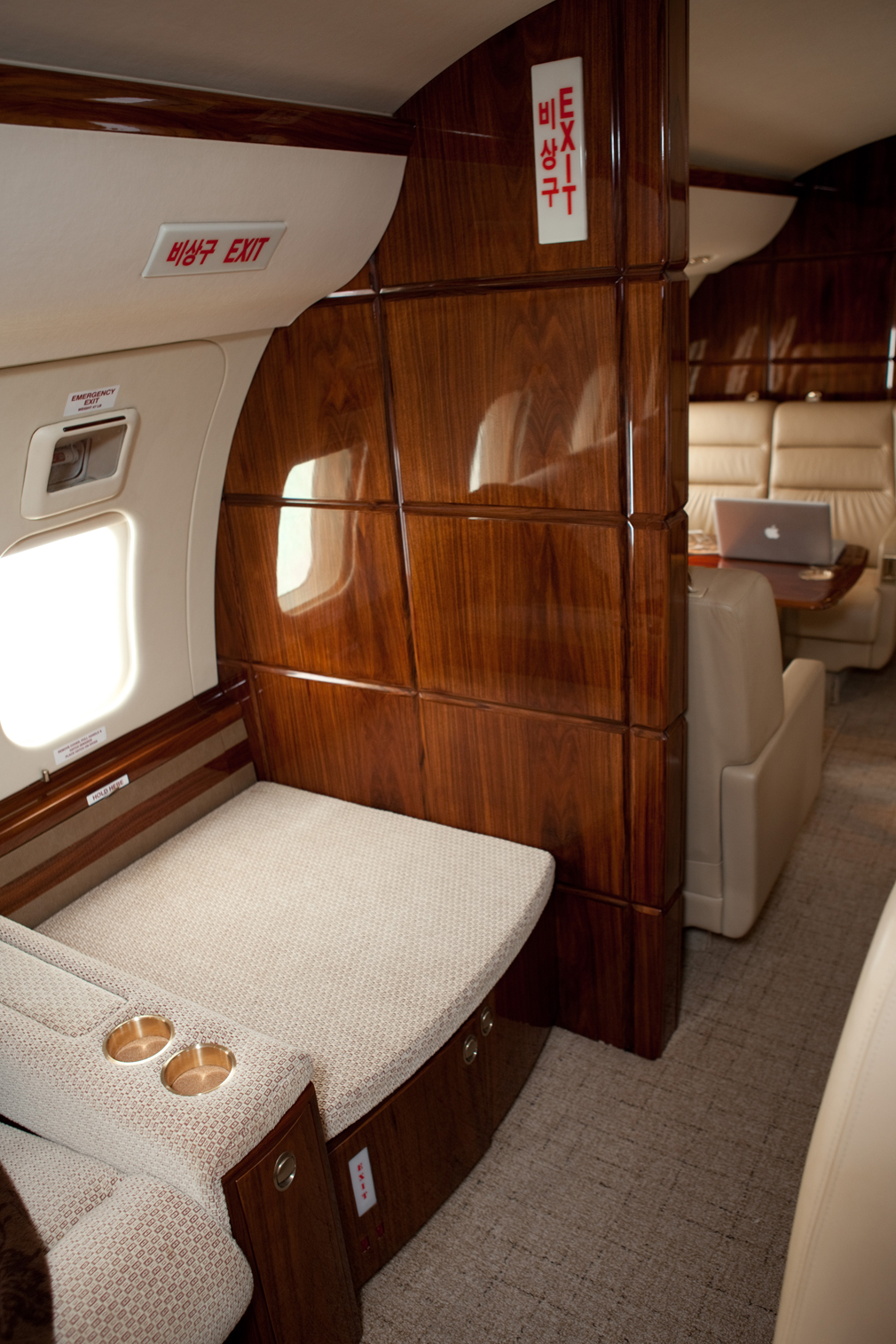

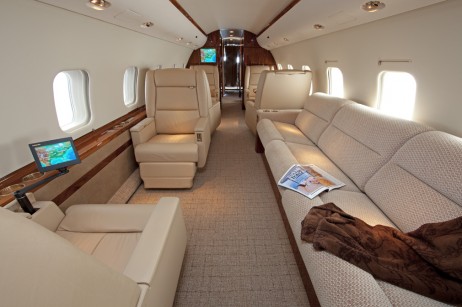

- Mid cabin three (3) place 9G divan (not certified for take-off and landing) opposite of a two (2) place club with fold out tables
- Bulkhead which separates the mid cabin and aft cabin and houses a computer, printer/fax, entertainment equipment and a low-desk

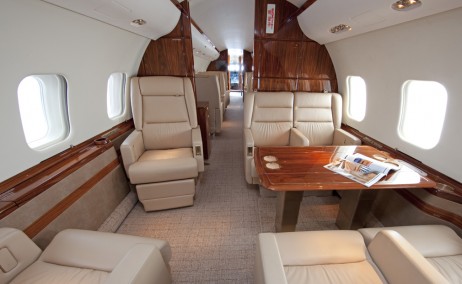

- Aft cabin four (4) place dining group with hi-low table opposite of a two (2) place club with fold out tables

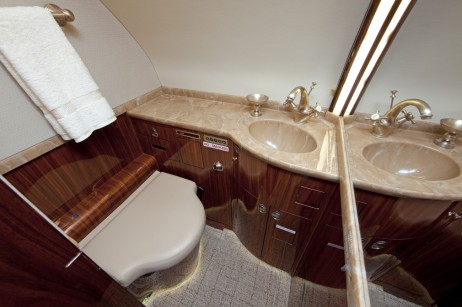

- Forward crew lavatory

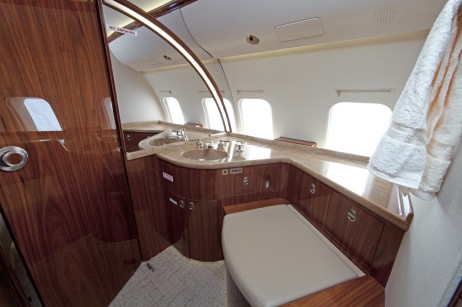

- Aft lavatory with wardrobe and aft baggage access
- Cockpit flight observer seat (Jumpseat)

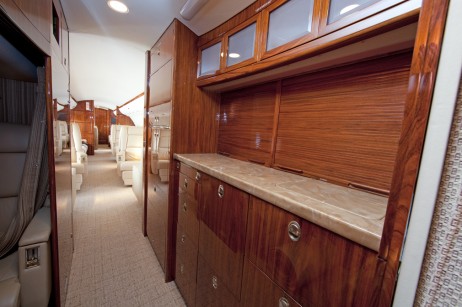

Galley Features:
- Hi-Temp oven
- Microwave oven
- Coffee maker
|
- Air chiller
- China/crystal storage
- Wine bottle/can storage
|
Exterior:

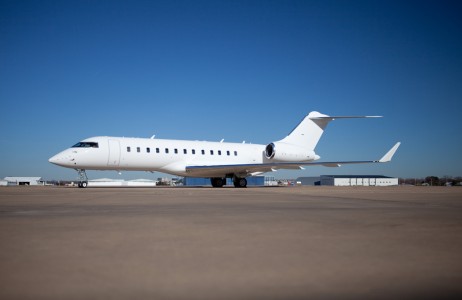

Recent paint. Overall Matterhorn white, personalization is quick and easy.
Weights:
- Gross Weight (Ramp): 98,250 lbs
- Max Take Off Weight: 98,000 lbs
|
- Max Landing Weight: 78,600 lbs
- Last Weighed: TBD
|
