2002 Cessna Citation Excel · # 5250

Airframe:

4,725 Hours Since New
3,825 Landings Since New
Engines on ESP Silver
APU on Aux Advantage
Airframe on Pro Parts

Engines:

	Left	Right
Description	Pratt & Whitney PW545A	Pratt & Whitney PW545A
Serial #	DB 0512	DB 0513
Engine TBO	5000 Hours	5000 Hours
Total Eng. Time Since New	4,725 Hours	4,675 Hours

Auxiliary Power Unit:

Description	Honeywell RE-100XL
Serial Number	P-297
Total Hours Since New	3400 Hours

Avionics:

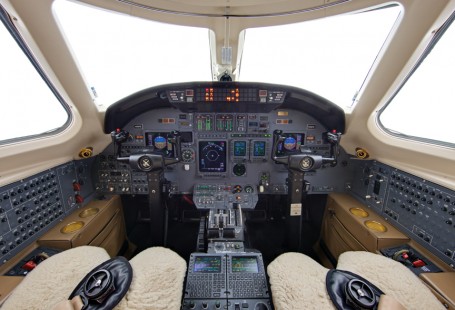

This Citation Excel is comprehensively equipped with a fully integrated Honeywell P-1000 Avionics suite generally summarized as follows:

Two 8”x7” Primary Flight Displays Full Complement of Honeywell Radios Including: – Dual Universal UNS-1Csp – Dual GPS – Dual Comms – Dual Navs – Dual Mode S Transponders – ADF – ALT-55B Radio Altimeter – Dual DME – Primus II Radio Control System

One 8”x7” Multi-Function Display Dual Davtron Clocks Dual AZ-850 Air Data Computers (displayed on PFDs) Loral/Fairchild A200S Cockpit Voice Recorder Artex C406-2 Three Frequency ELT with Navigation Interface Cockpit Speaker Mute Switch Honeywell Mark V Enhanced GPWS TCAS II (Ver. 7 Software) Honeywell KHF-950

Additional Highlights/Options:

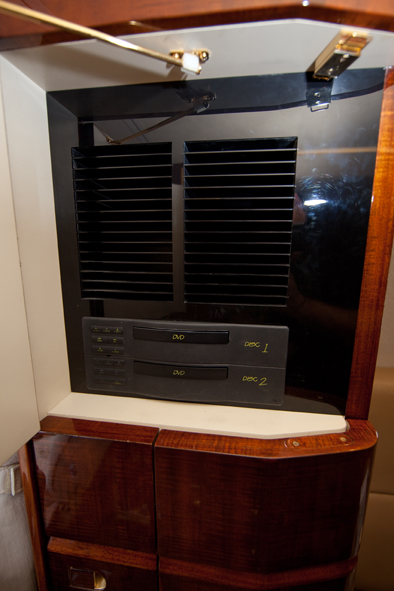

Honeywell Auxiliary Power Unit Aircell 3100 Iridium Satphone RH Landing Gear Control Airshow 400 Cabin Entertainment System Dual DVD Players Forward 10” Monitor Several Individual Monitors at Seats

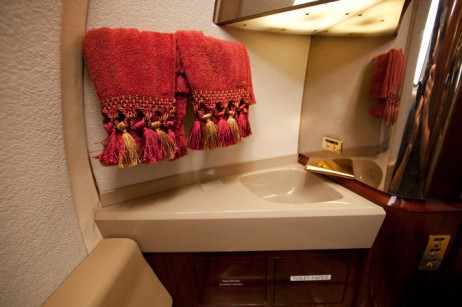

Precise Flight Pulselight System DTU Memory Stick Data Transfer Unit Overwater Life Vests LH Belted Lavatory Seat Externally Serviceable Lavatory Concorde Lead Acid Battery Several 110V AC Outlets in Cabi

Exterior:

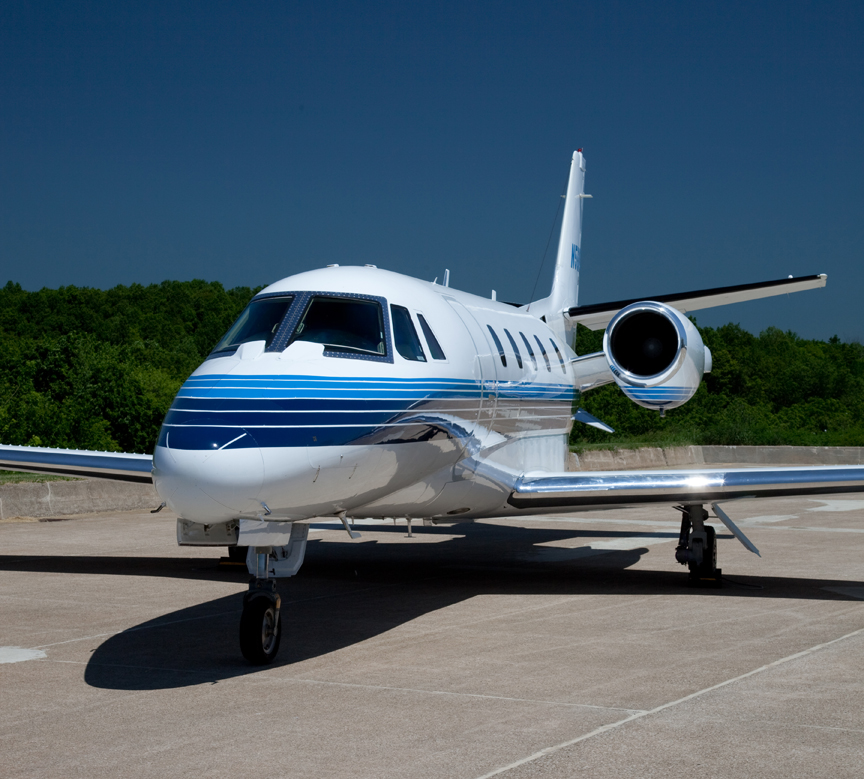

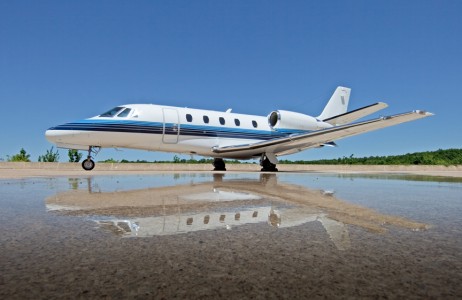

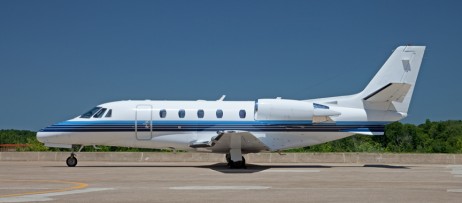

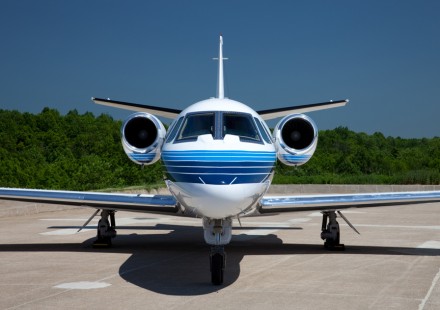

Overall Matterhorn White with Marlin Blue and Aristo Blue Striping.

Interior:

Refurbished in May 2010

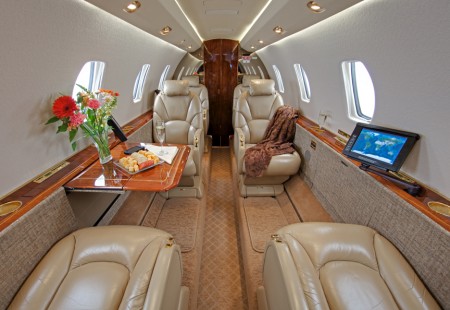

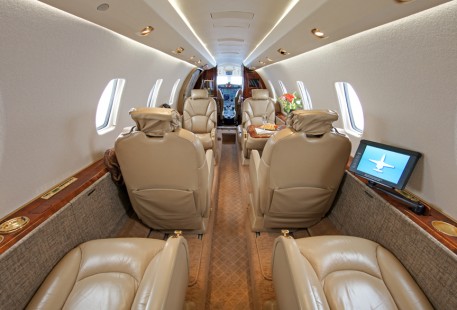

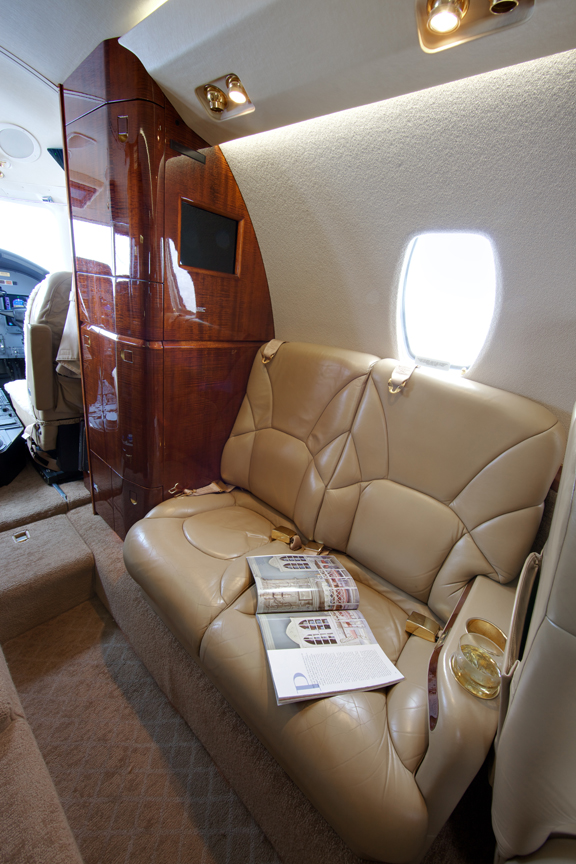

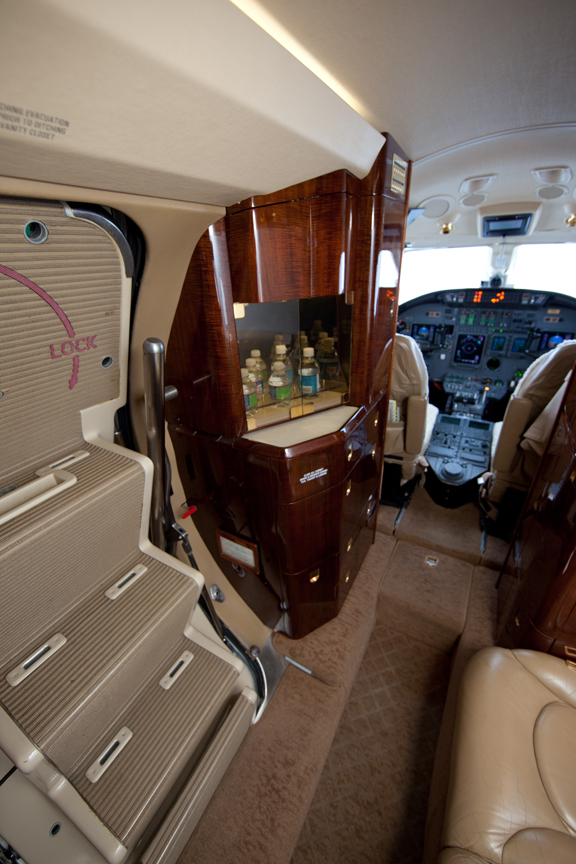

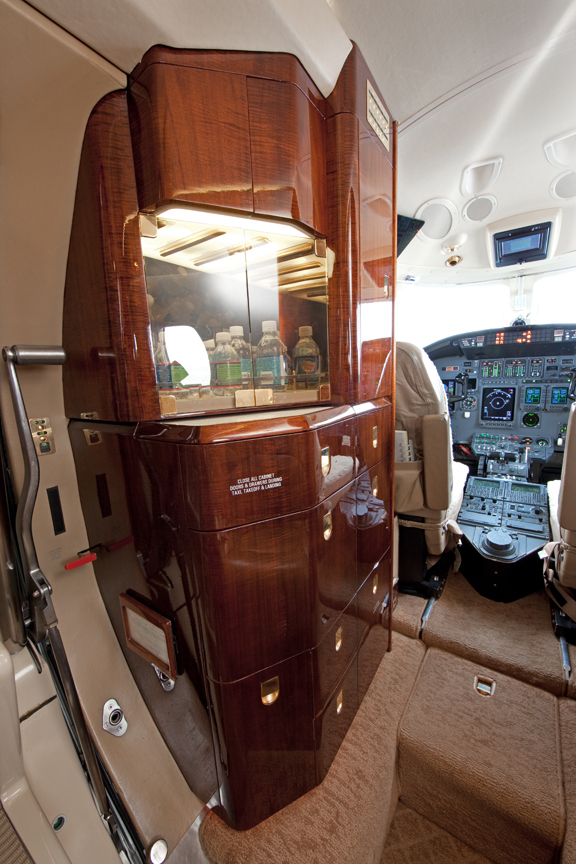

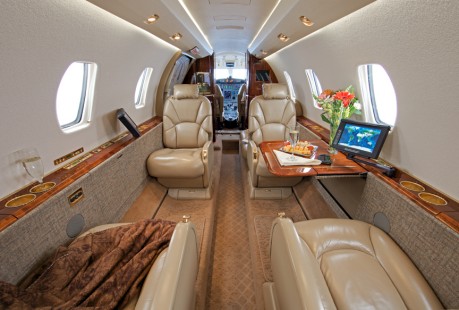

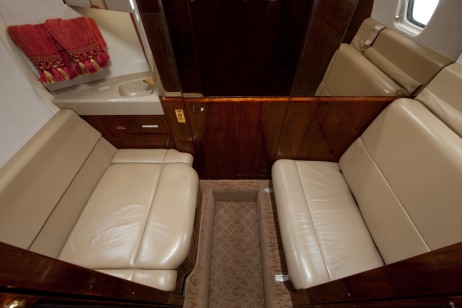

The cabin is configured with a 8 Passenger center club seating arrangement, six pedestal seats, and a 2-place RH forward side facing couch, a LH forward refreshment center, and a RH forward entertainment cabinet. Additional cabin highlights include the following:

Indirect Lighting, Dropped Aisle Lighting, Chime, and Crew Seat Sheepskin Slipcovers Two Full Size Executive Tables with Leather Tabletop Inserts in the Center Club Area

The interior soft good colors are handsome chestnut leather with nougat and light tan fabrics and accented by deep figured mahogany wood with a patterned chestnut carpet. The fixtures are bright almond gold plated throughout.

Weights:

Empty Weight –12,524.85 lb Maximum Takeoff Weight – 20,000 lb Maximum Zero Fuel Weight – 15,000 lb Basic Operating Weight – 12,960 lb Maximum Landing Weight – 18,700 lb Fuel Capacity – 6,790 lb

Maintenance Highlights:

Inspection Description	Last Complied With	Next Due
Phase 1-4 Inspections	July 10, 2010 at 4,481 Hrs @ Westar ALN	July 31, 2012 or 4,781 Hrs
Phase 5 Inspection	July 10, 2010 at 4,481 Hrs @ Westar ALN	July 31, 2013 or 5,681 Hrs

Maintenance Tracking by Cescom
