Airframe:
1,175 Hours / 475 Cycles As of April 17, 2012
Warranty Start Date – September 2008
C of A Date – September 14, 2008
FAR 91 CertifiedFAR 91 Certified
Fresh 48 Month Inspection and More – Constant Aviation (April 2012)
Engines:
|
Left |
Right |
| Description |
Rolls Royce AE 3007A1E |
Rolls Royce AE 3007A1E |
| Serial # |
AE-313110 |
AE-313111 |
| Engine Total Time |
1,175 Hours |
1,175 Hours |
| Engine Cycles |
475 Cycles |
475 Cycles |
Auxiliary Power Unit:
| Description |
Sundstrand APS500R with Silencer |
| Serial Number |
SP-E0828011 |
| Total Time |
1,360 Hours |

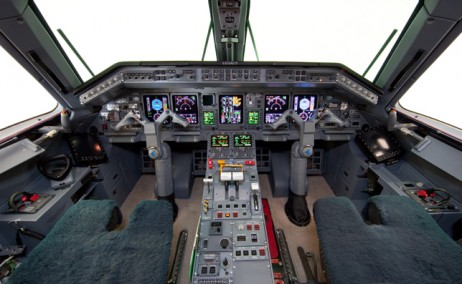

Avionics:
- Honeywell Primus 1000 5-Tube EFIS
- Integrated Standby Instrument System (ISIS)
- Engine Indication and Crew Alerting System (EICAS)
- Dual Integrated Avionics Computers
- Dual VHF Nav System with NAV/ADF/DME
- Dual VHF Communication System with 8.33KHz spacing and Mode S Diversity
- Honeywell CAT II Autopilot/ Flight Director
- Passenger Address and Cabin Interphone System
- Dual Radio Management Units
|
- Dual FMS / GPS Units
- Airborne Audio System
- Honeywell SSCVR
- Honeywell SSFDR
- Aural Warning Unit
- Dual Digital Clocks
- Dual RVSM Air Data Computers
- Dual Inertial Reference System
- Radio Altimeter
- Artex ELT (406 MHz)
- Honeywell TCAS 2000 with Change 7
- Mk VII EGPWS
- SELCAL
- Dual Stall Protections System
- Single HF Radio
- Central Maintenance Computer
|
Avionics Options:
- 2nd HF Radio
- Communications Management Unit with 3rd Honeywell HF (8.33 kHz spacing)
- 2nd Radio Altimeter
- Steep Approach Capability
|
- Two Class II EFB Installed in Cockpit
- Iridium ST-3100 and Aerocom 1000
- Lightning Sensor System
- Auxiliary Flight Data Acquisition Unit
|
Additional Equipment:
- Long Range Fuel System
- Provisions for Extended Over Water OPS
- Cockpit Jumpseat
- Secure Cockpit Door
- Forward Crew Lavatory
- Flight Attendant Seat

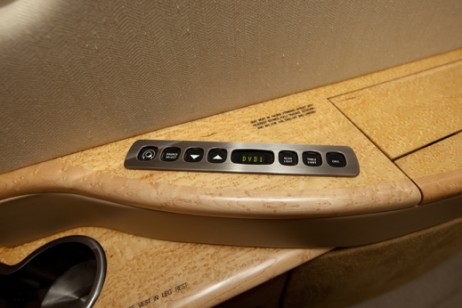

- Additional VIP Control in Aft Cabin Zone at LH Aft-Facing Seat
- Additional 77 Cubic Feet Oxygen Bottle
|
- Twelve (12) Man Life Raft
- Six (6) Man Life Raft

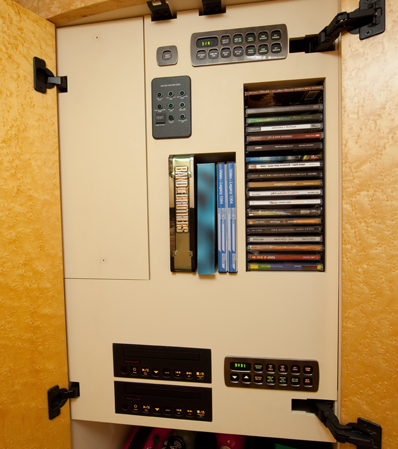

- Dual DVD System
- Dual 17″ Cabin Monitors Forward Bulkhead
- 17″ Monitor on Aft Bulkhead
- Airshow 410
- Thirteen (13) 115V AC Outlets throughout

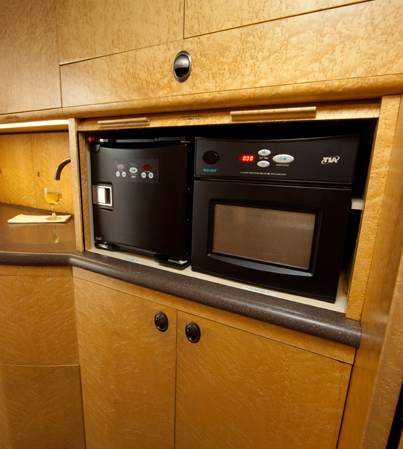

- Microwave and Flight Oven
- Nespresso Coffemaker
|
Exterior:

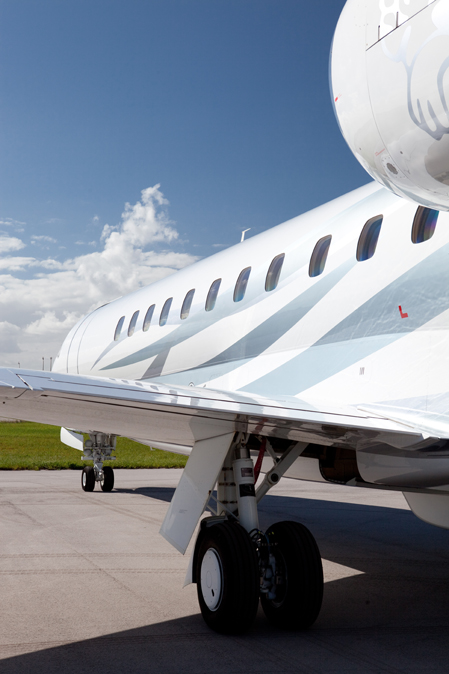

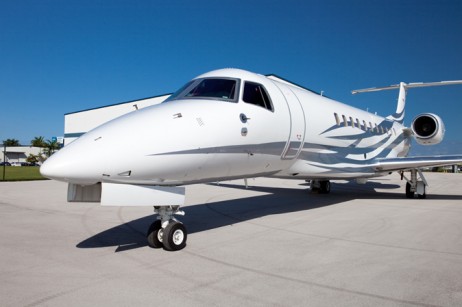

Overall Matterhorn White Wings and Fuselage with Dark Gray, Blue Gray and Pale Blue Accent Striping
Interior:

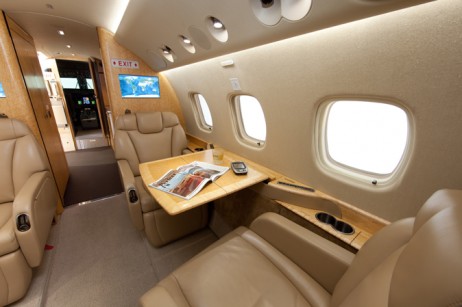

Seating for Thirteen (13) Passengers in an Executive Three (3) Zone Configuration Featuring:

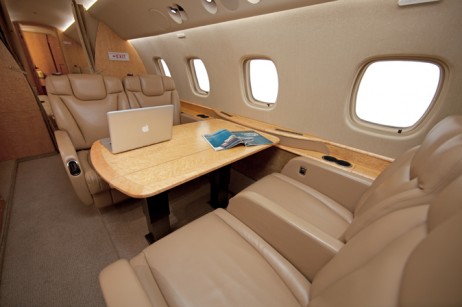

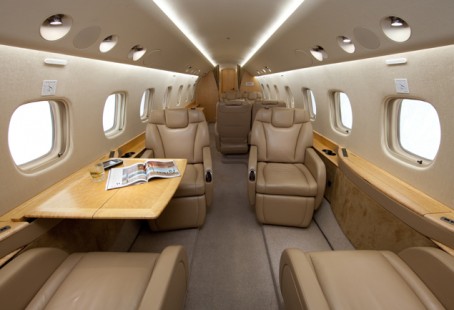

- Four (4) Place Forward Club with Forward Cabin Pocket Door

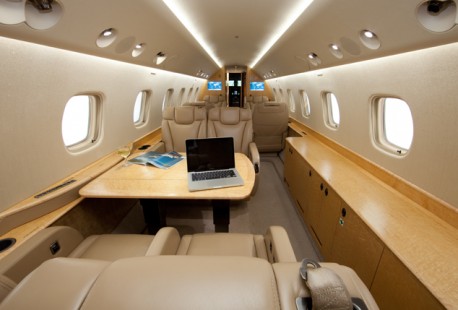

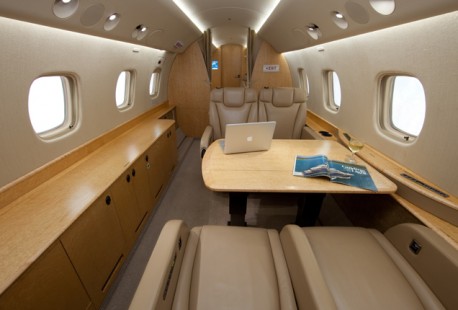

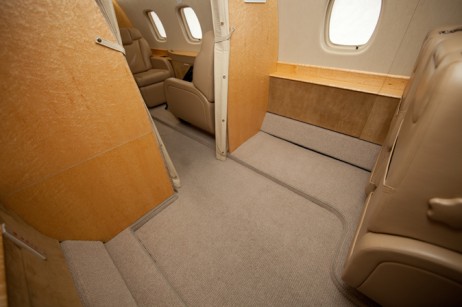

- Mid Cabin Four (4) Place Conference/Dining Area with Hi/Low Table on L/H Side & a Credenza on R/H Side with Mid Cabin Removable Bulkhead and Privacy Curtain

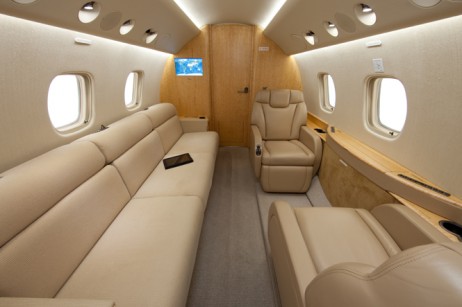

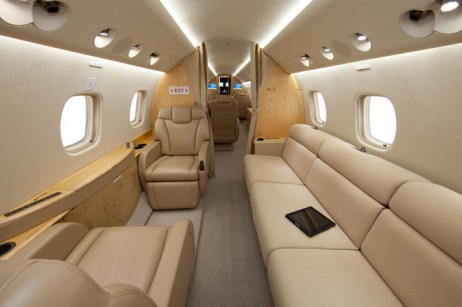

- Aft Cabin Three (3) Place Divan on the Aft R/H Side and Two (2) Facing Single Seats on the Left
|

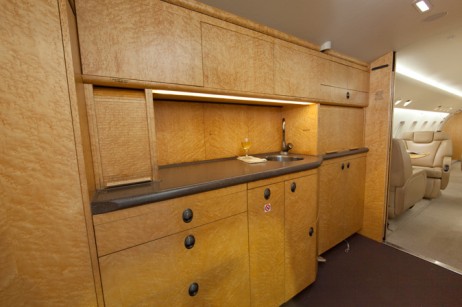

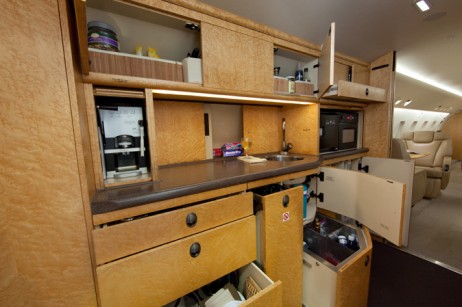

- Fully Equipped Forward Galley and Crew Lavatory

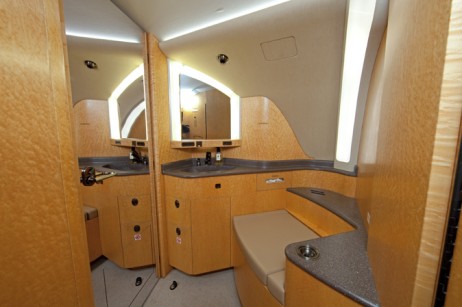

- Aft Lavatory with Vanity and Walk-In Baggage Compartment

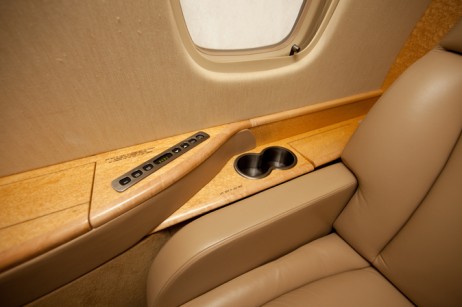

- Antique Nickel Plating, with Taupe Carpets, Wicker-Colored Leather Seats
- Cabinetry Finished in Striking Satin-Colored Birdseye Maple
|
Warranty Status
From the factory delivery date, Legacy 600 warranty period is as follows:
- Parts manufactured by Embraer or its subcontractors (including structural parts):
- Parts manufactured by Embraer’s vendors:
- Avionics and avionics accessories – Covered directly by Honeywell:
- APU and APU accessories – Covered directly by Hamilton Sundstrand:
- Engines and engines accessories – covered directly by Rolls Royce:
|
- 60 Months or 5,000 FH, whichever occurs first
- 36 Months
- 60 Months or 5,000 FH, whichever occurs firstb
- 60 Months or 3,000 FH, or 6,000 FC, whichever occurs first
- 60 Months or 2,500 FH, whichever occurs first
|
Maintenance Status:
| Inspection |
Last Complied With |
Next Due |
|
|
|
|
|
|
|
|
|
| L4 T48 (48 month) |
April 2012 |
2016 |
