Airframe:
718.3 Hours Total Time (as of Dec 16th2011)
287 Landings
Entry to Service Date – October 5, 2007
Certificate of Airworthiness Date – July 18, 2007
Engines:
|
Left & Right |
| Description |
Rolls-Royce Tay Mk 611-8C |
| Engine Hours Since New |
718.3 | 718.3 |
| Engine Midlife/TBO |
6000/12,000 hours |
| Thrust |
13,850 lb |
APU:
| Description |
Honeywell GTCP36-150 |
| Engine Hours Since New |
766 |

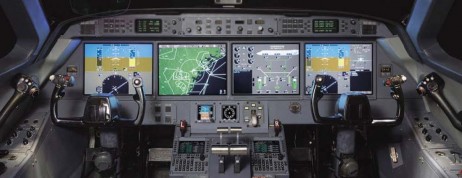

Avionics:
The G450 is equipped with Gulfstream’s exclusive PlaneView™ cockpit featuring the same technologically advanced avionics package developed for the G550. A general summary of this aircraft’s next generation, Honeywell Primus Epic avionics suite is as follows:
- PlaneView™ Avionics Suite
- Honeywell Head Up Display / Visual Guidance System
- Enhanced Vision System (EVS)
- TCAS 2000 collision avoidance system
ACARS with satellite communication. link and cockpit printer
- Passenger address system
- MagnaStar radiotelephone system with 5 handsets (includes 1 cockpit handset)
- 3 VHF navigation systems
- 88 Parameter Digital Flight Data Recorder
|
- Four Multi-Function 14” Flat Panel LCD Avionics Displays
- Two side mounted Cursor Control Devices
- SecuraPlane 500 Security System
- Honeywell MCS-7000 Satellite Communications (SATCOM) system
- Dual 24-Channel Global Positioning System
- Enhanced GPWS with windshear detection
- SecuraPlane 500 Security System
- 3 VHF communication systems
- Honeywell LSZ-860 Lightning Detection System
|
Additional Highlights/Options:
- Dual zone cabin temperature control
- Common keyed locks
- Precise Flight Pulselite system
- Lockable fuel capss
- Wing tip taxi lights
- Enhanced Sound Proofing
- Recliner footrests on forward facing single seats
|
- Maintenance storage box
- 30 gallon pressurized water system
- Passenger emergency oxygen system
- Life vests and rafts (rafts JAR Ops 1 compliant with 3-frequency ELTs)
- Manuals on CD
- Manual lumbar on #2 left hand and right hand single seats
|
Exterior:

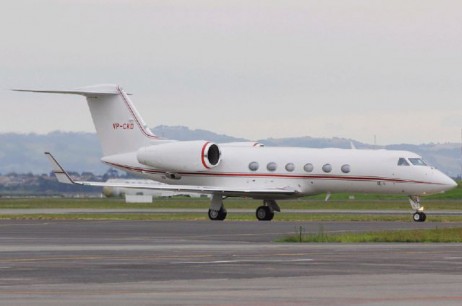

Factory New Overall White with Handsome Red and Silver Accent Stripes
Interior:

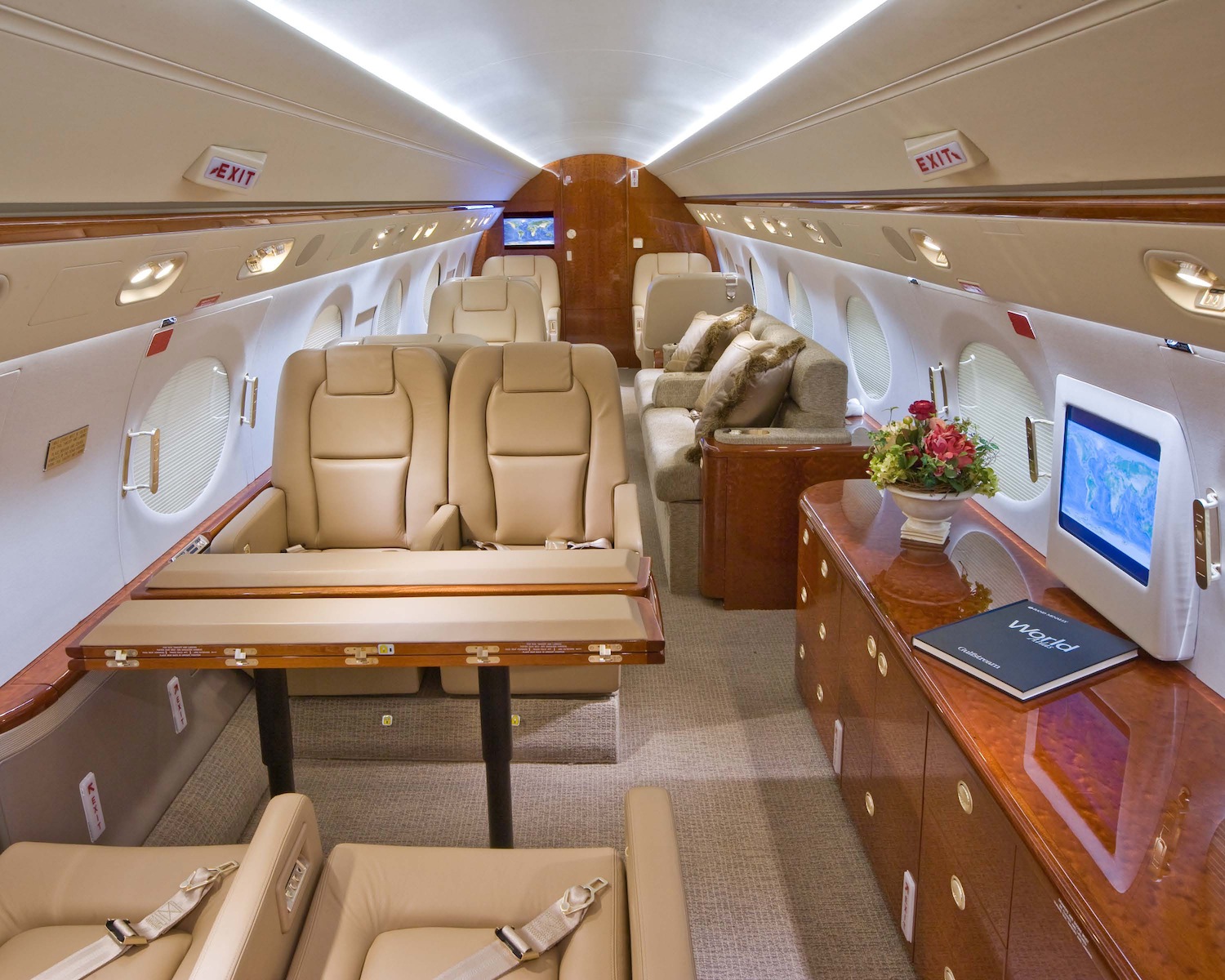

Factory new Gulfstream completion. This G450 features the Universal Aft Galley configuration further described as follows:
| Tables, Credenzas, and Misc. Storage |
Passenger Cabin |

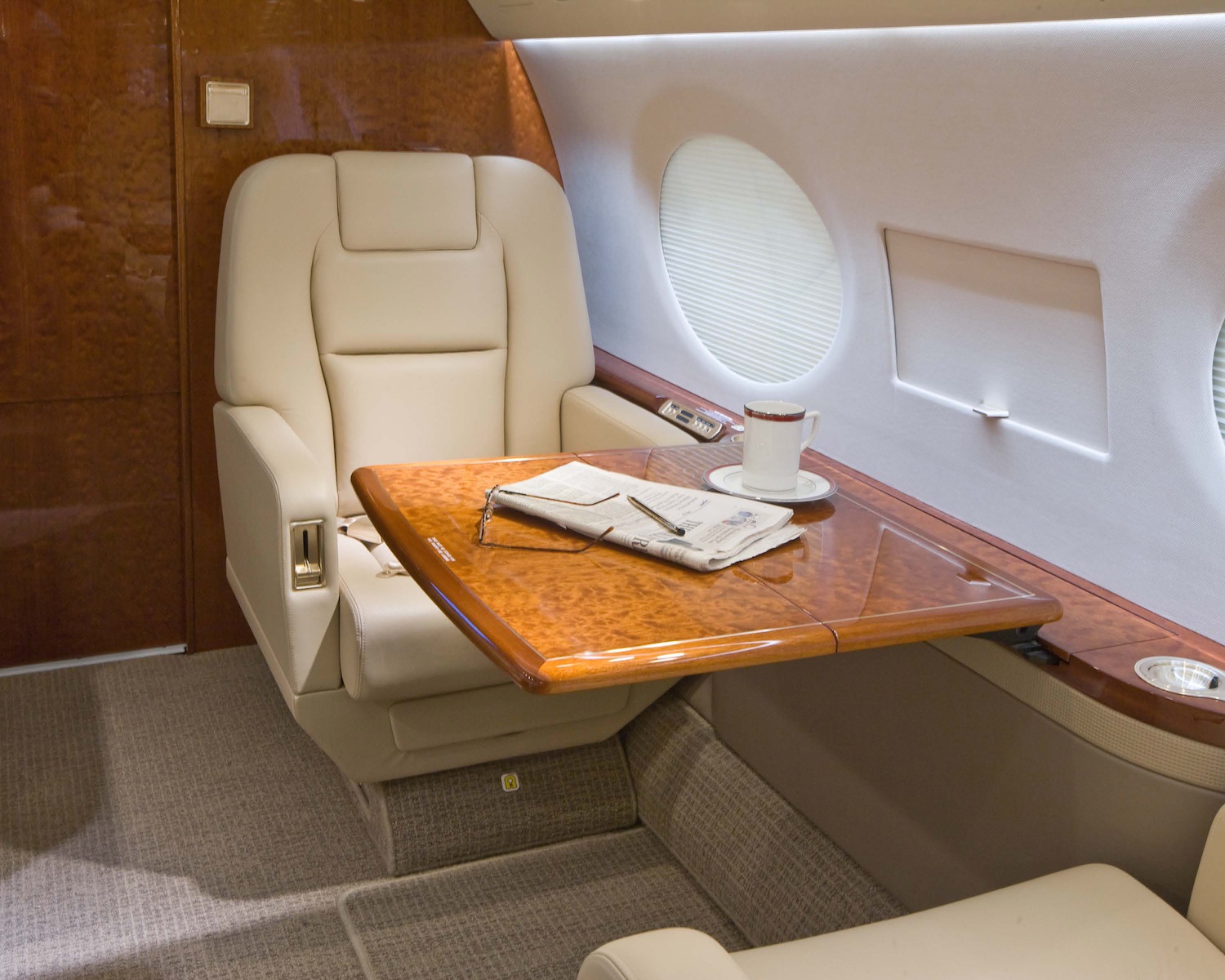

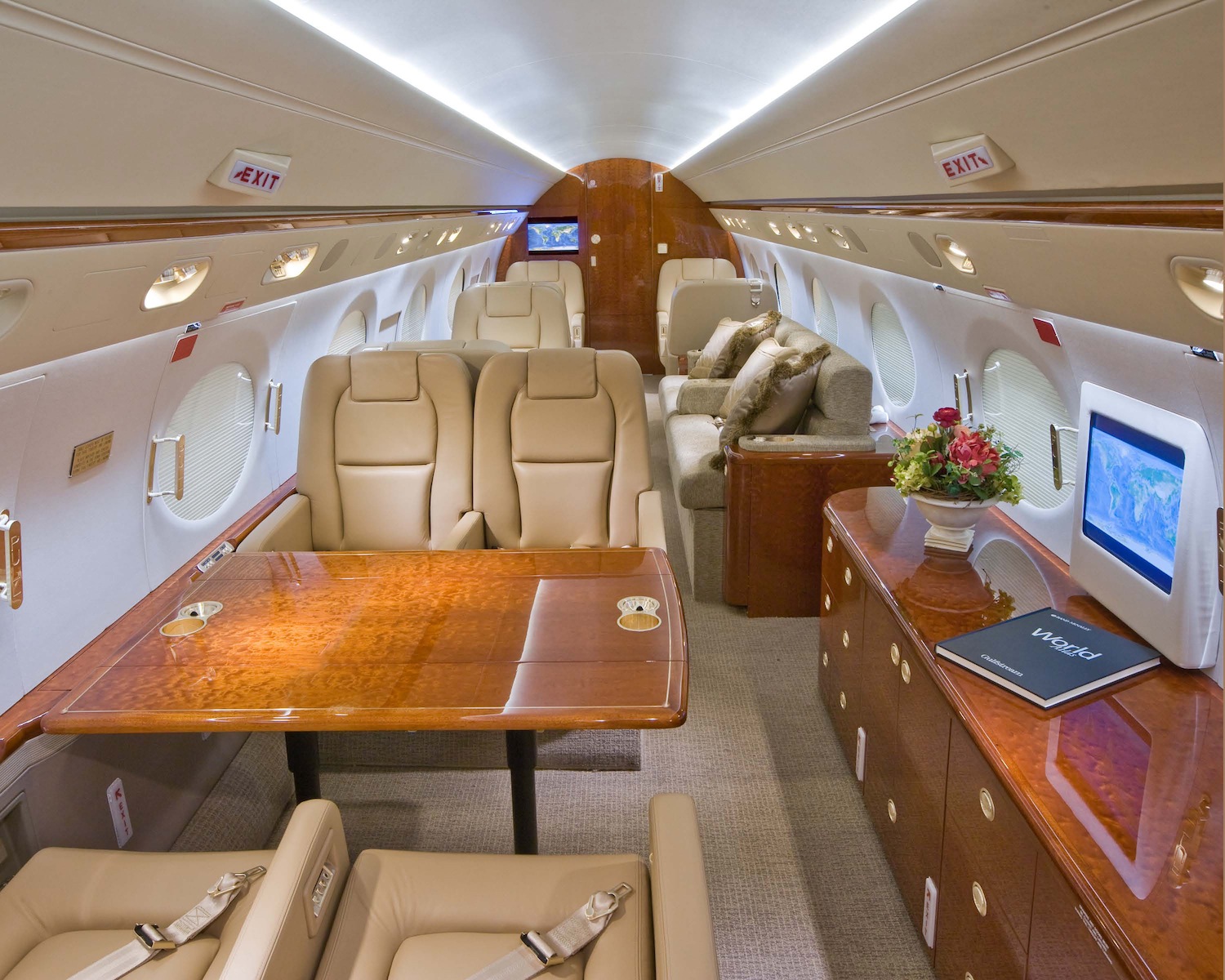

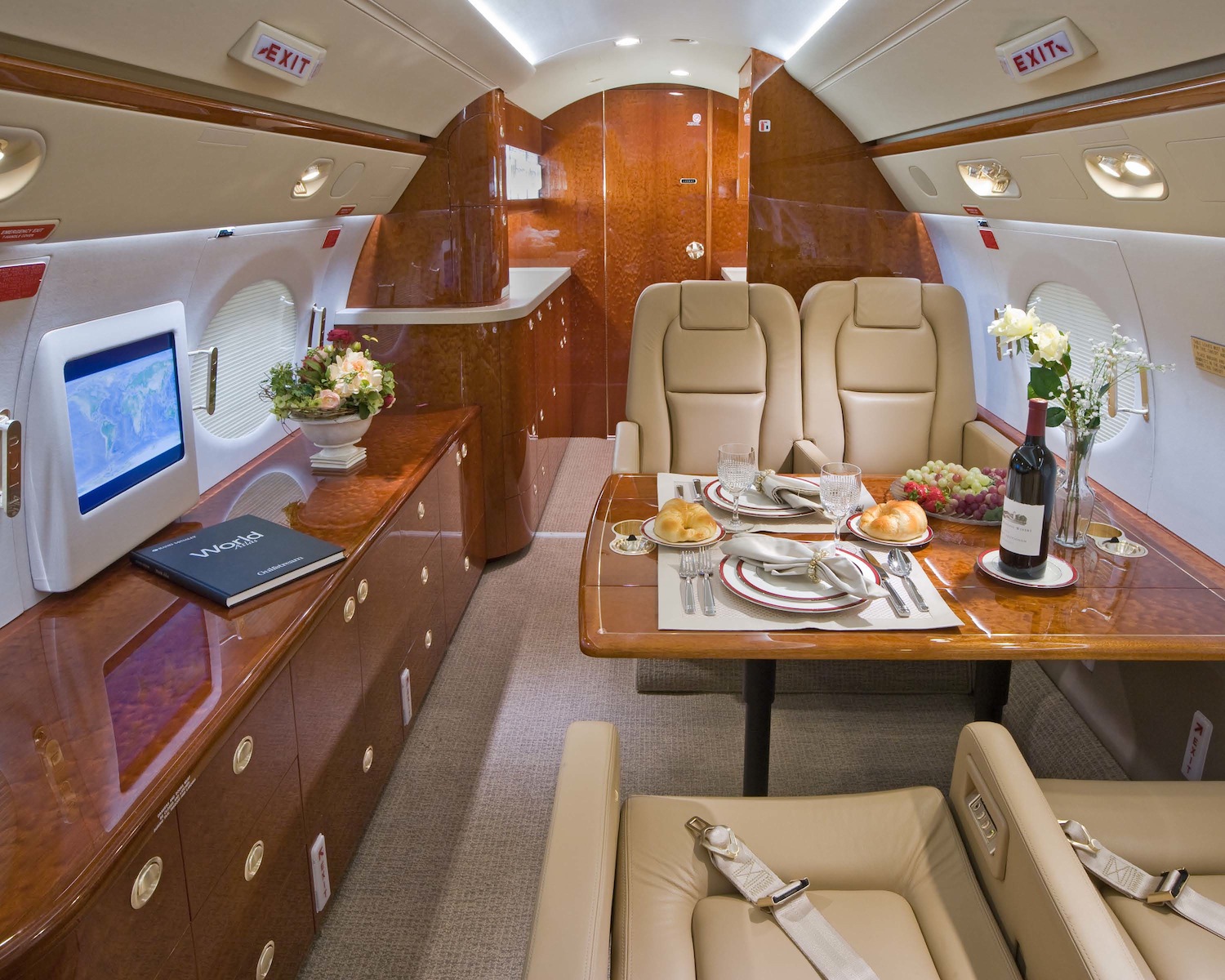

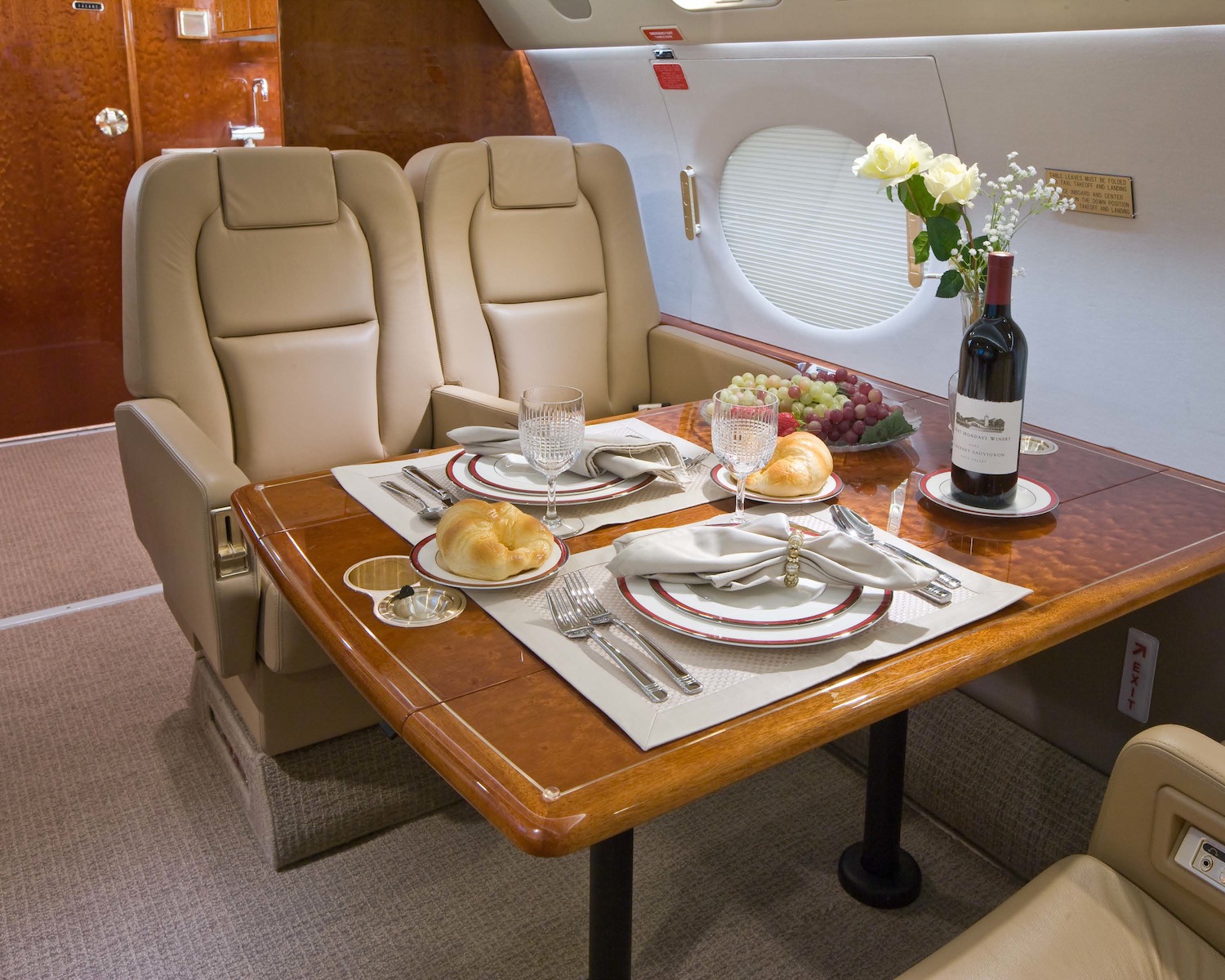

- 43″ x 31″ conference table at four-place grouping
- 25″ x 23″ console table between each two-place grouping

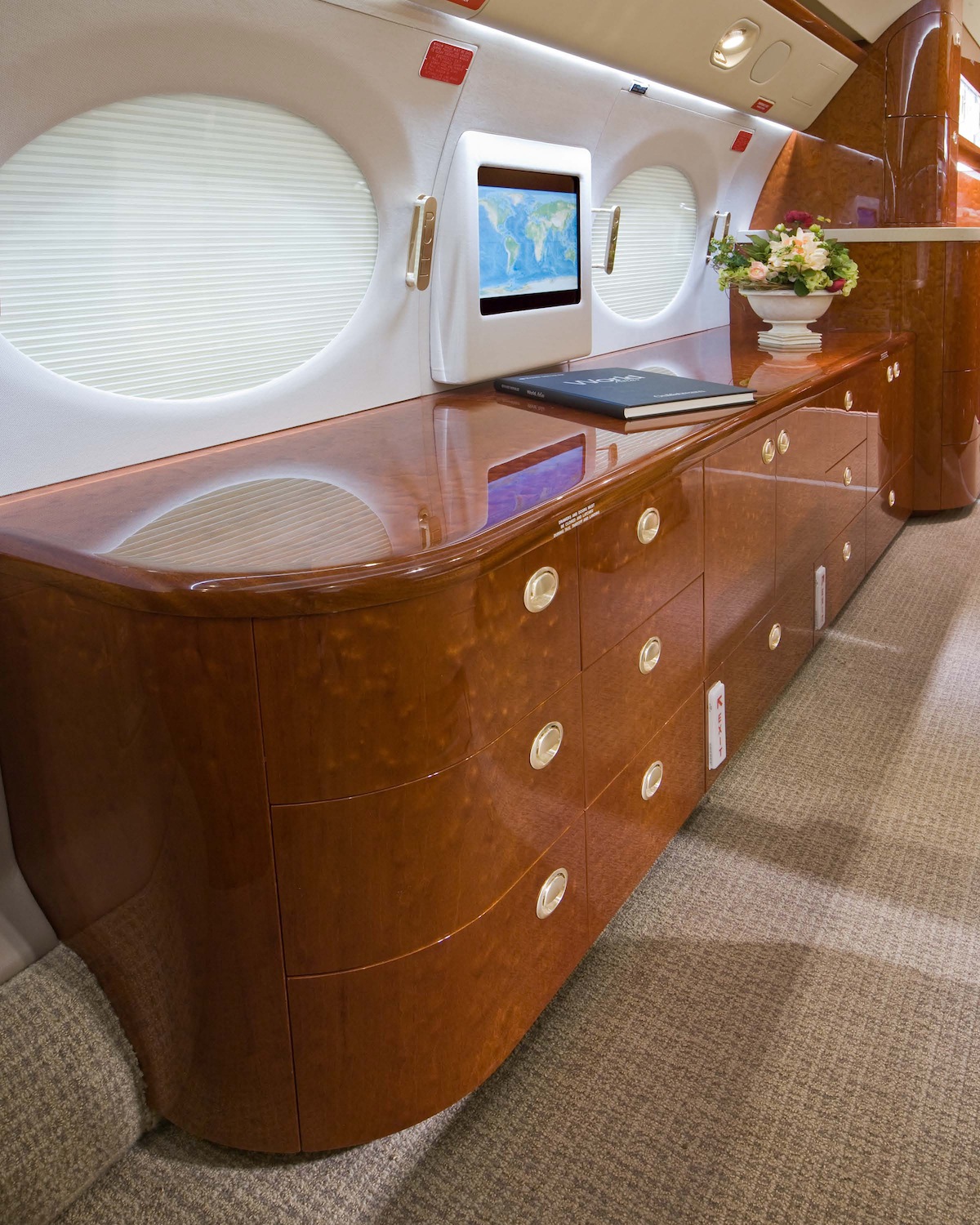

- Credenza across from conference grouping incorporating the cabin entertainment equipment, facsimile machine and
- Miscellaneous storage
- Magazine storage on forward and aft cabin bulkheads
|
- Gulfstream Interior Periphery:
- Headliner
- Electric window shades
- Decorative continuous window overlays
- Passenger service units:
- L.E.D. Reading and table lights
- Swivel air outlets
- Passenger emergency oxygen
- Audio system speakers
- L.E.D. Indirect cabin lighting
|
| Seating |
Forward Entryway Area |

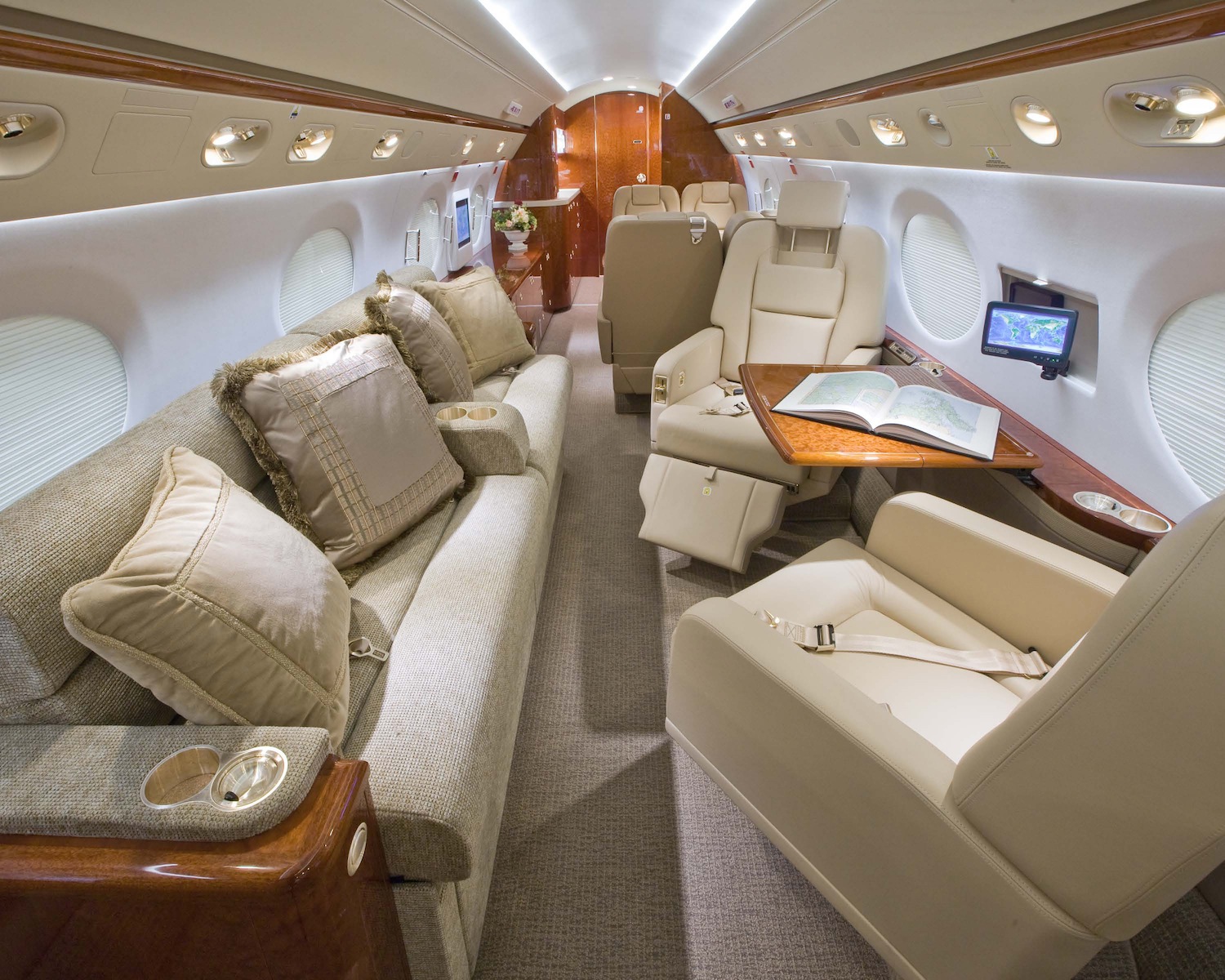

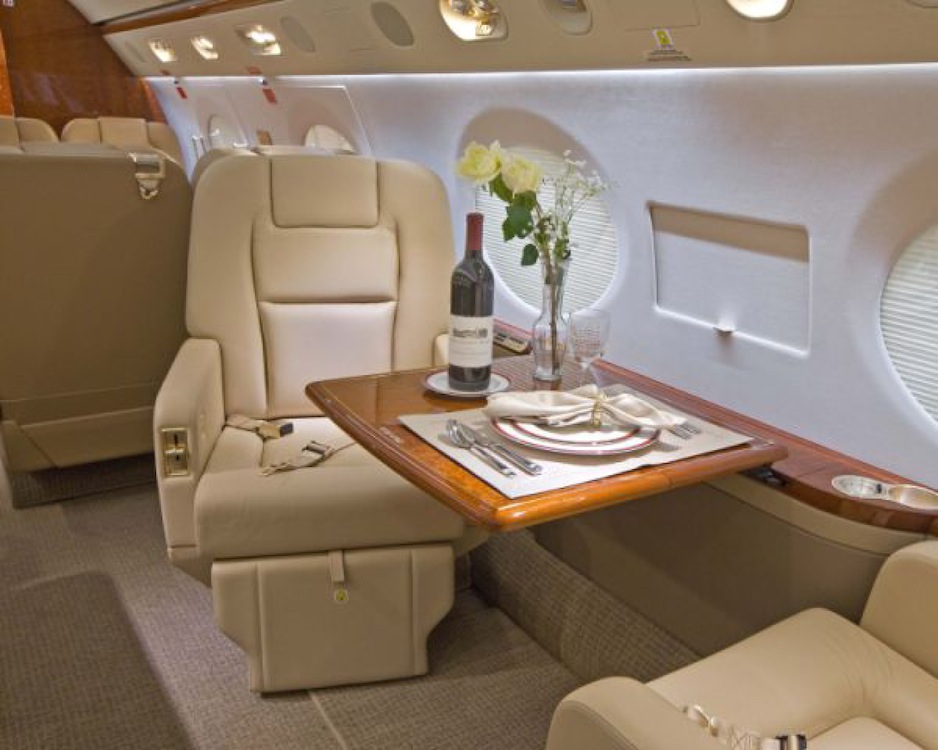

- Six (6) berthable single seats with recliner footrests
- One (1) four-place conference grouping

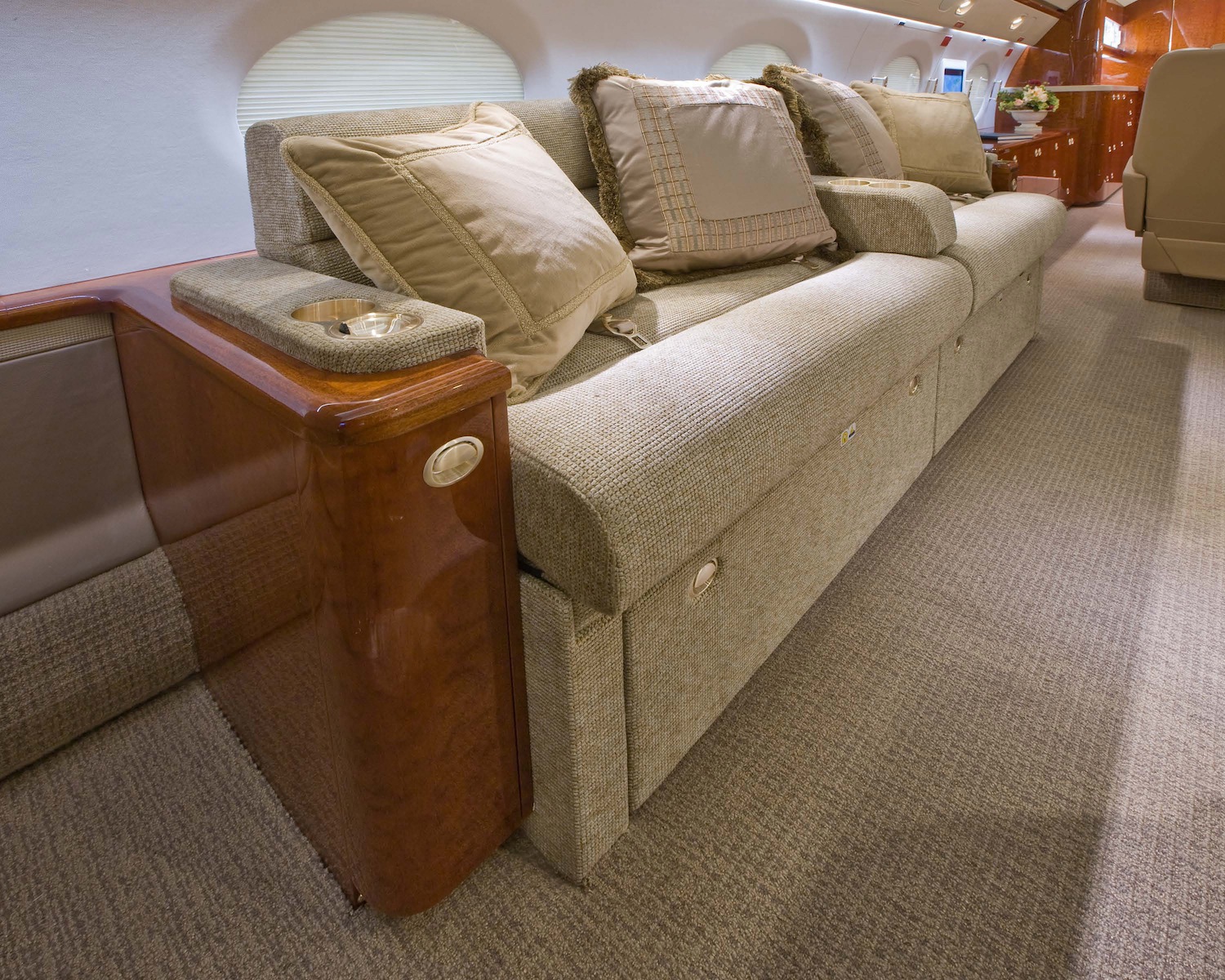

- One four-place berthable divan
|
- Entryway acoustical door
- Cockpit privacy door
- Crew refreshment compartment
- Crew lavatory with vacuum toilet
- Manual storage cabinet
|

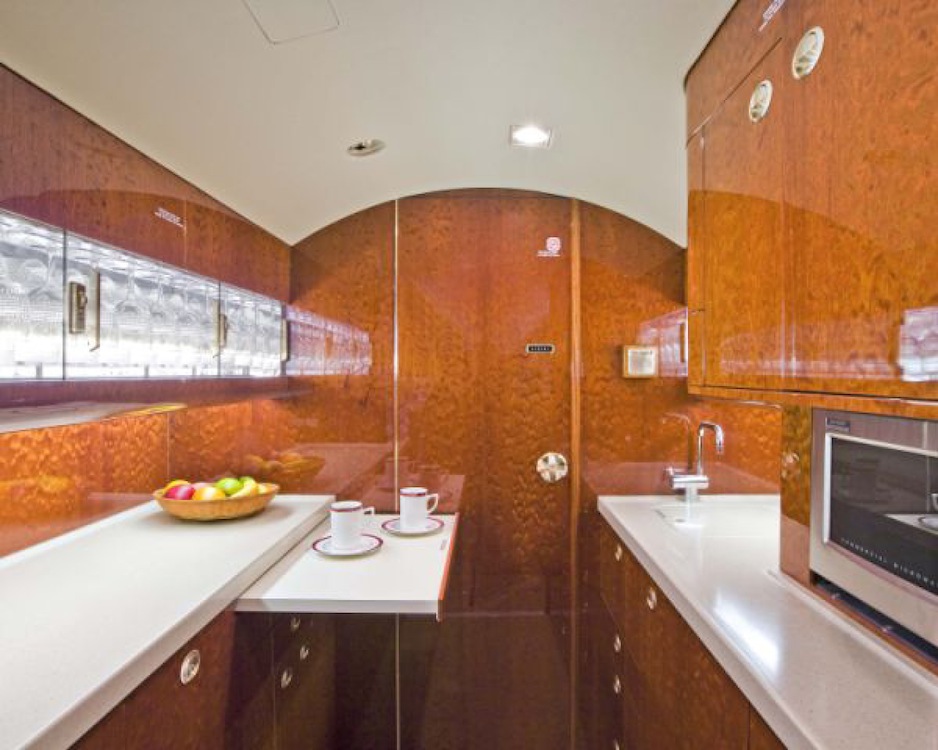

Aft Galley
- Complete hot/cold meal and beverage service
- High-temperature oven
- Microwave oven
- 2 large ice drawers
- Cold food storage with gasper cooling
- Solid surface countertops
- Aerolux Espresso maker
- Customs sealed wine and liquor storage
|
- Large sink with hot and cold water faucet
- Gulfstream supplied china and cutlery, including fitted storage
- Gulfstream supplied crystal displayed in lighted compartments
- Storage for snacks, beverages, and other supplies
- Large waste container
- Water Sterilization system
|

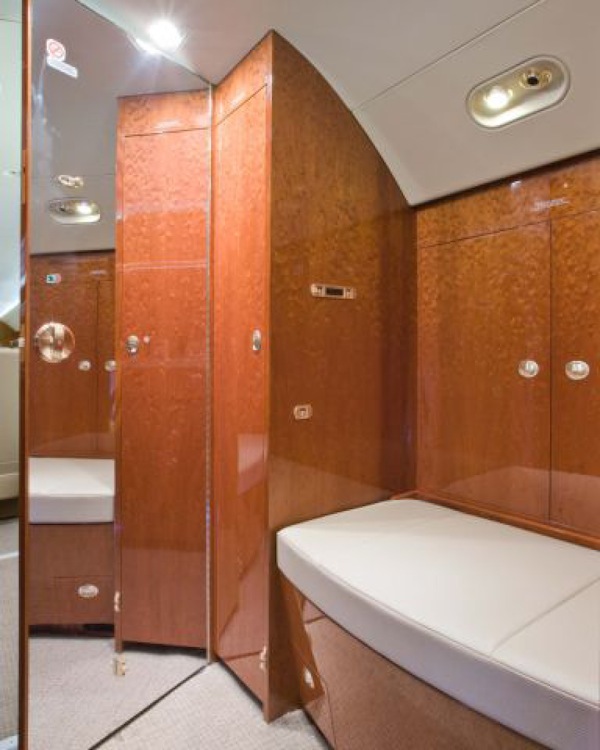

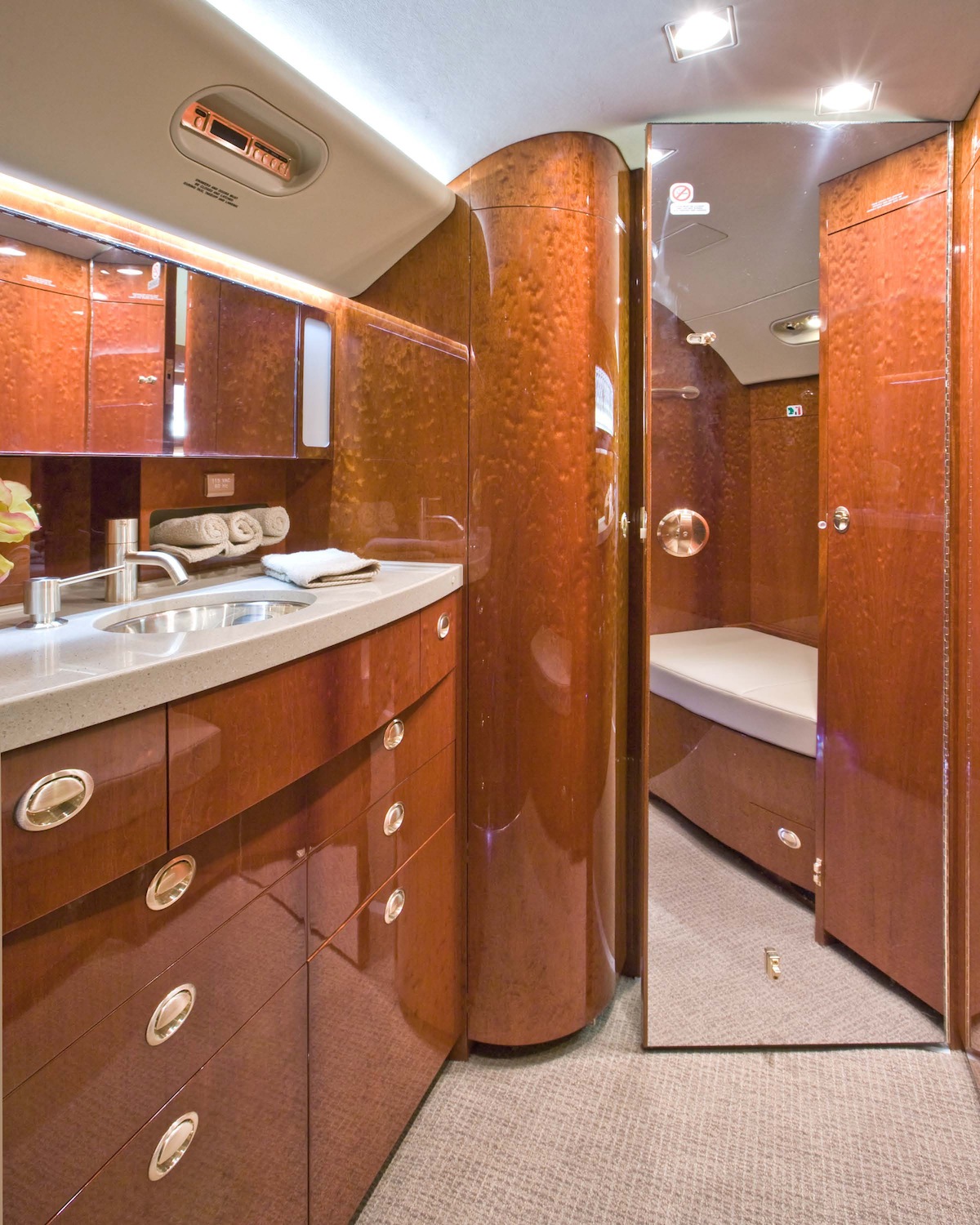

Aft Lavatory Area
- 2 floor-to-ceiling closets (both with adjustable shelves) for garment/miscellaneous storage

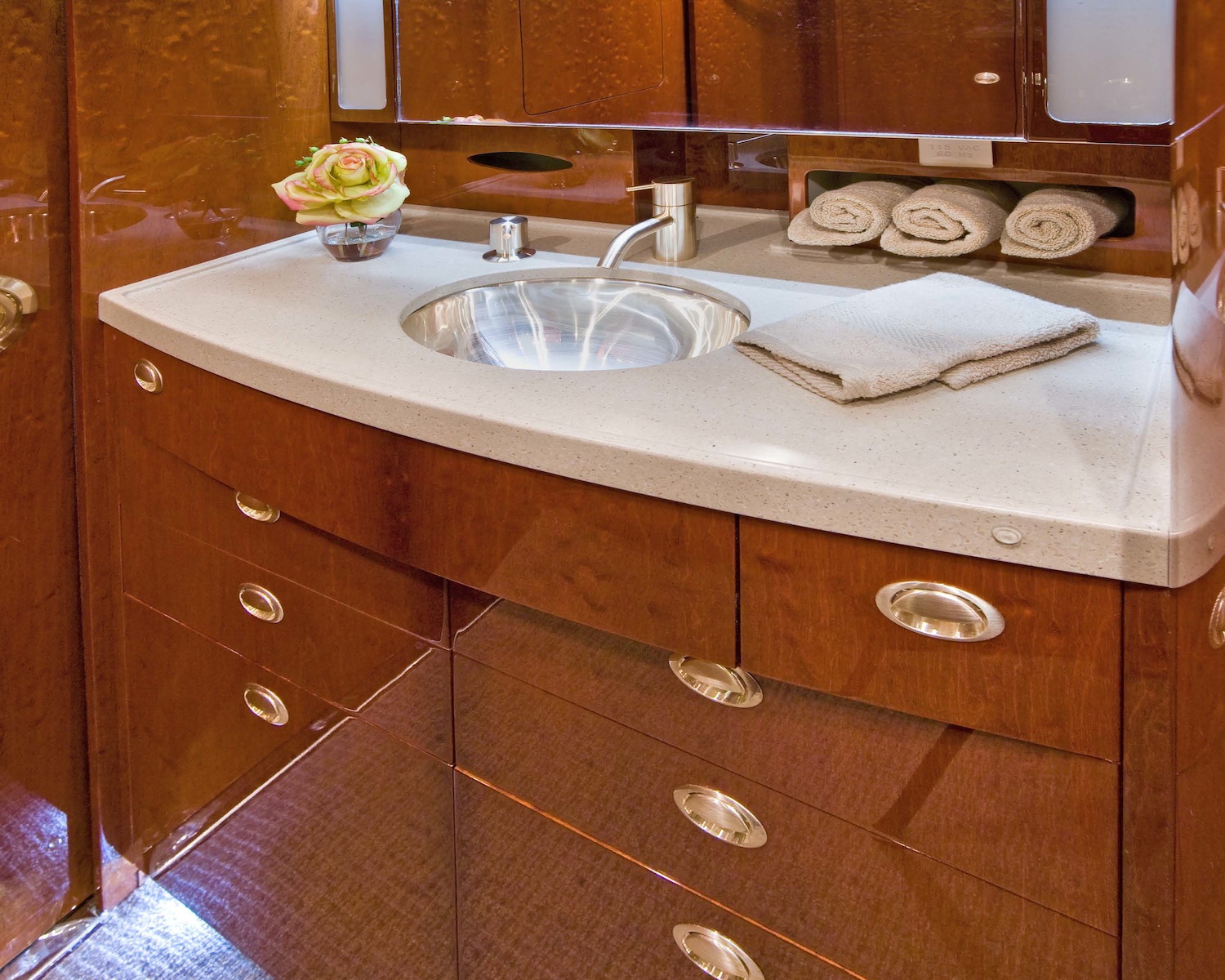

- Vanity with sink incorporating hot and cold water faucet
|
- Solid surface countertop
- Vacuum toilet
- Storage for toiletries, etc.
- Waste container
|
Cabin Electronics
- Airshow “Type A” series controls throughout interior
- VIP controls at two seat locations
- Master control for lighting, entertainment systems and cabin temperature in the VIP switch panels and remote controls
- Audio/visual equipment:
- One (1) compact multi-disc CD player
- Two (2) dual digital video disc players (multi-region)
- 20″ LCD monitor in forward left-hand cabin bulkhead
- 17″ LCD monitor in panel above the credenza
- 7.0” monitors at each single seat
- Secureaplane camera system with 3 cameras
- Auxiliary audio/visual input
- Cabin audio system with individual headphone controls at each passenger seat
- Airshow 4000 passenger flight information system with worldwide maps
- Airshow wireless entertainment remote control system with 2 color touch screen remotes
- Local Area Network (LAN)
- Honeywell HD-128 High Speed Data System
- Electric utility outlet at each seat grouping
- Plain Paper Facsimile Machine
Warranty
Gulfstream offers a comprehensive and fully transferable warranty generally outlined as follows:
Item
- Primary and Secondary Structures (doors, fairings, flight control surfaces, nacelles, etc.)
- Rolls Royse Engine Material Warranty
- Production Non-Structural Labor & Material
|
Coverage
- 15 years / 15,000 hours
- Labor Included – Includes Corrosion or Until Oct 5, 2022
- 6,000 hours or Until Oct 5, 2013
- Until Oct 5, 2012
|
