Airframe:
4,104.5 Hours
1,496 Landings
In Service Date – 11 May 2004

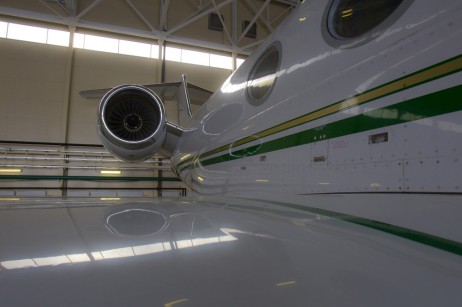

Engines:
|
Left |
Right |
| Description |
Rolls-Royce BR710 C4-11 |
Rolls-Royce BR710 C4-11 |
| Engine TBO |
On Condition |
On Condition |
| Thrust |
15,385 lbs. |
15,385 lbs. |
| Engine Total Time Since New |
4,104.5 Hours |
4,104.5 Hours |
| Engine Cycles Since New |
1,496 Cycles |
1,496 Cycles |
| Engine Program |
Rolls-Royce Corporate Care |
Rolls-Royce Corporate Care |
Auxiliary Power Unit:
| Hours & Cycles |
3,860 Hours |
|
| APU Coverage |
Honeywell MSP |
|
Avionics:

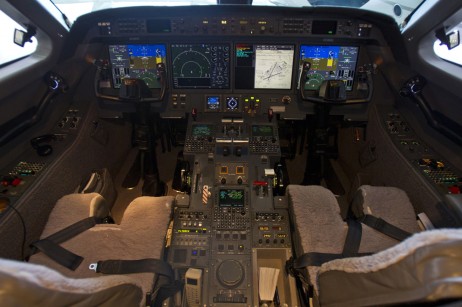

The Gulfstream exclusive Honeywell Primus Epic PlaneView avionics system is standard on the G550 and includes four 14-inch displays and all electronics to perform communications, navigation and hazard warning information. A general summary of this aircraft’s next generation, Honeywell Primus Epic avionics suite is as follows:
- PlaneView™ Avionics Suite
- Honeywell Head Up Display / Visual Guidance System
- Enhanced Vision System (EVS)Airborne Flight Information System (AFIS) with Satellite Communications Link
- Triple Flight Management Systems
- Triple Air Data Modules
- Triple Inertial Reference Systems
- Data Management Unit
- Dual HF Transceivers
- Triple VHF Communications (NAVCOM)
- Dual Automated Direction Finder
- Dual (Mode S) Transponders
- TCAS 2000 Collision Avoidance
- Dual DME Transceivers
- Passenger Address System
- SecurePlane 500 Security System
- Four (4) Multi-Function 14″ Flat Panel LCD Avionics Displays
- Two Side-Mounted Cursor Control Devices
- Local Area Network (LAN)
- Color Weather Radar System
- Dual Radio Altimeters
- Multi-Channel Comm System
- Honeywell MCS-7000 SATCOM
- Dual EGPWS Units
- Triple Audio Controls
- Triple Frequency ELT
- Flight Data Recorder (FDR) – 25 Hours
- Cockpit Voice Recorder (CVR)
- Dual 24-Channel Global Positioning Systems
- EGPWS with Windshear / Terrain Detection
|
Additional Highlights/Options:
- Autothrottles
- Cockpit Printer
- Dual Zone Cabin Temperature Control
- Common Keyed Locks
- Precise Flight Pulselite System
- Life Vests and Rafts (Rafts JAR Ops 1 Compliant with 3-Frequency ELTs)
- 88 Parameter DFDR
- AirCell Axxess II Dual Channel Iridium Phone System Capable of Two Channels of Voice
- Maintenance Storage Box
- Manuals on CD
- Wing-Tip Taxi Lights
- 30-Gallon Pressurized Water System
- Passenger Emergency Oxygen System
- Lockable Fuel Caps
- Three (3) External Cameras

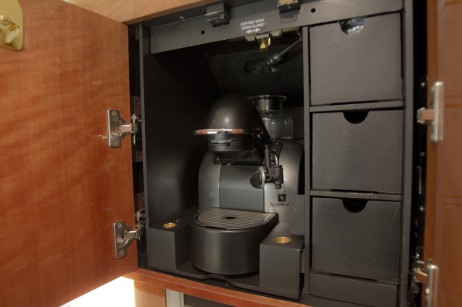

- Nespresso Machine
|
Cabin Electronics:

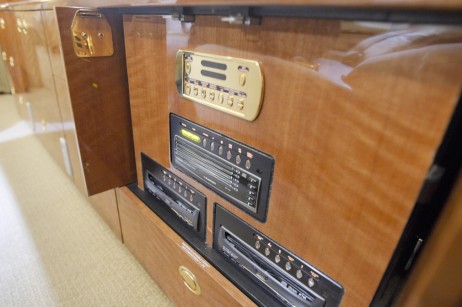

- Pacific Systems “Pegasus” Series Controls throughout Interior
- Master Control for Lighting, Entertainment Systems and Cabin Temperature at Two VIP Seat Locations, as well as in the Galley
- Compact Multi-Disc CD Player
- Dual Digital Video Disc Players
- 17″ LCD Monitor Above Credenza
- 17″ LCD Monitor in FWD Bulkhead

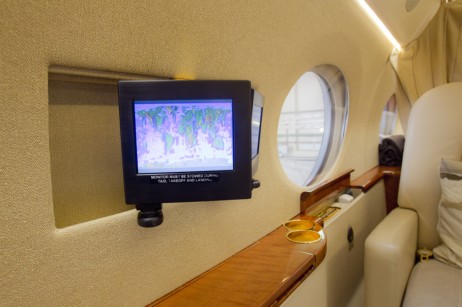

- Airshow 4000 Passenger Flight Information System with Worldwide Maps

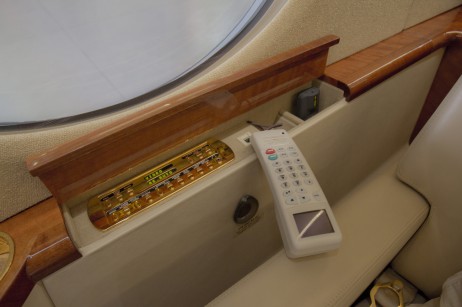

- Telephone Handsets at Three Locations in the Cabin

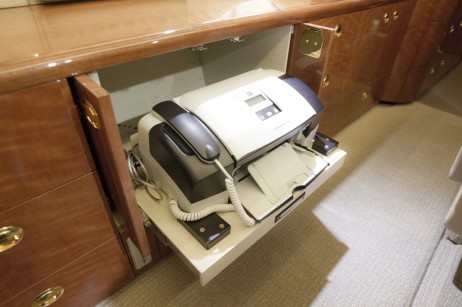

- Plain Paper Facsimile Machine
- Electrical Utility Outlet at each Seat Grouping
- Dual-Shade Electronic Windows
- Wireless LAN
- Cabin Audio System with Individual Headphone Controls at each Passenger Seat
|
Interior:

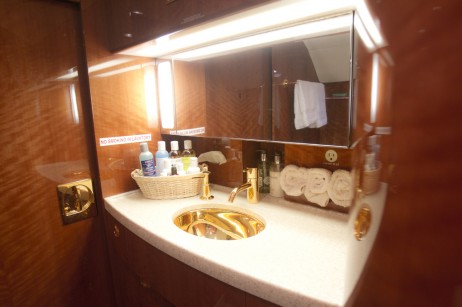

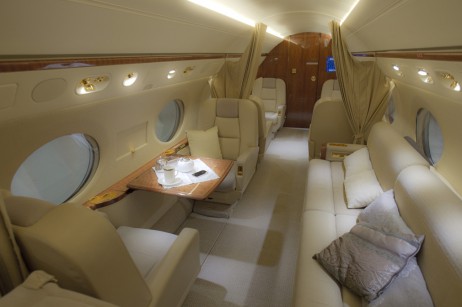

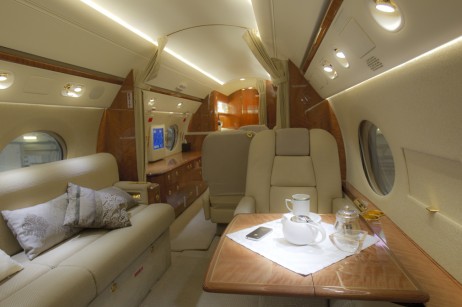

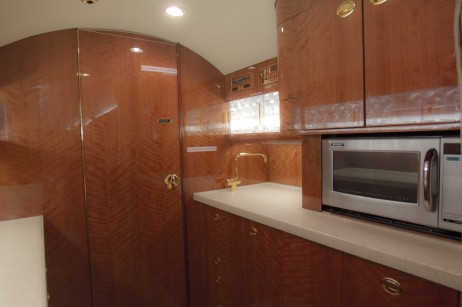

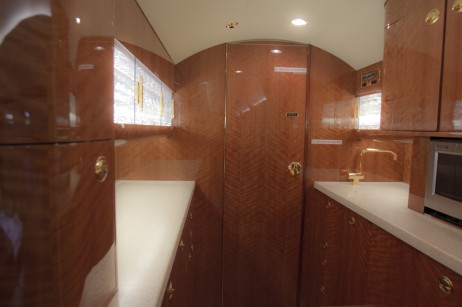

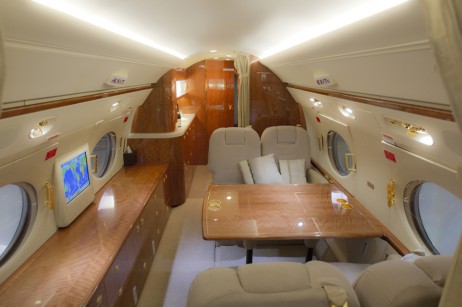

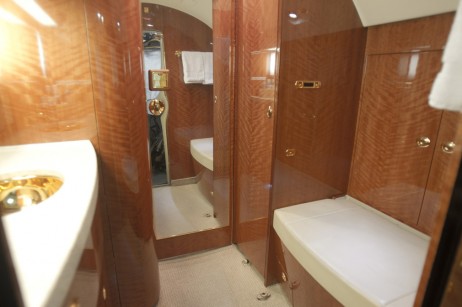

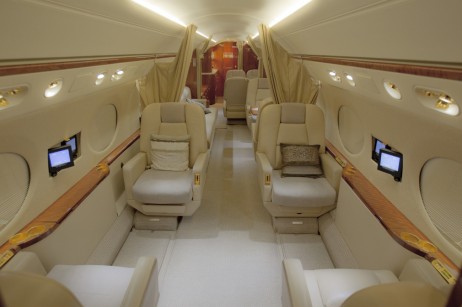

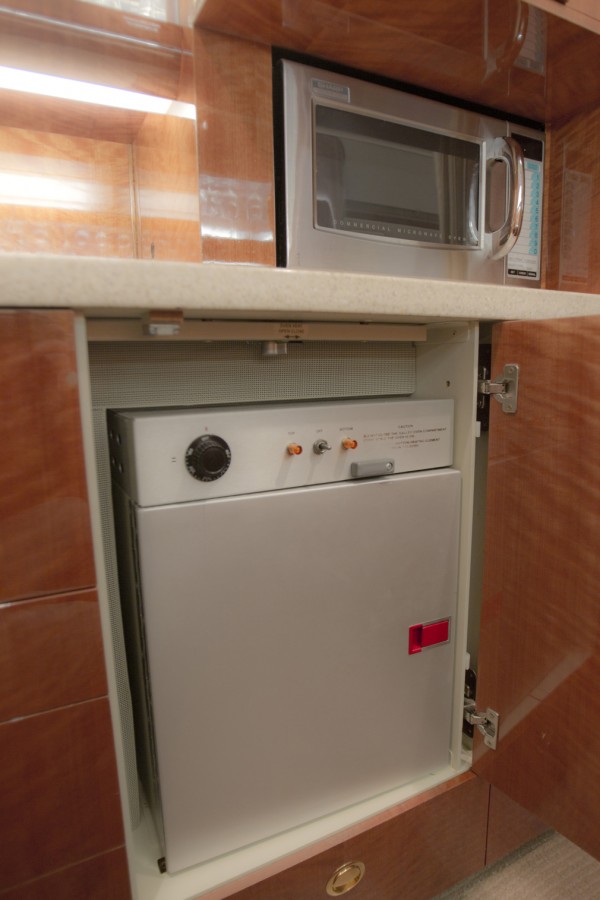

| Fourteen (14) Passenger featuring a Forward Four (4) Place Club, Mid-Cabin Two (2) Place Club Opposing Four (4) Place Divan on Right Side, Followed by a Aft Cabin Four (4) Place Conference Group. A Crew Rest Area is located in the Forward Cabin and Full Galley in the Aft with Forward and Aft Lavatorys. The Galley includes a High Temp Oven, Microwave, and Nespresso Machine. |
