Airframe:
5,100 Hours Total; 13,500 Landings
Entry to Service – 8/19/1996
Maintenance Tracking by CAMP
| Description Engine Serial Number Engine Time Since New Engine Time Since Overhaul Engine Cycles Since New Engine Cycles Since Overhaul Engine TBO |
Pratt & Whitney PT6-36B 36224 4,788 1,100 10,204 3,500 4,000 hours |
Pratt & Whitney PT6-36B 36225 4,950 1,250 11,700 3,630 4,000 hours |
Gear Boxes:
| Description Main (Quiet Mod) Intermediate Tail Rotor Reduction Gearbox Main Rotor Blade Spindles |
TSO 1,125 491 3,724 1,303 100 |
TBO 3,250 4,500 4,000 3,500 5,000 |
Time Remaining 2,125 4,009 276 2,197 4,900 |
Avionics:

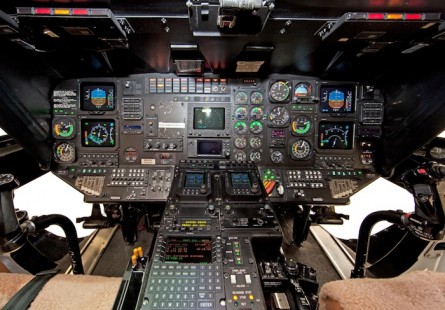

The Sikorsky S76b is equipped with an integrated Honeywell Primus II avionics suite. A general summary of this aircraft’s Honeywell avionics suite is as follows:
|
|
Additional Highlights:
|
|
Exterior:

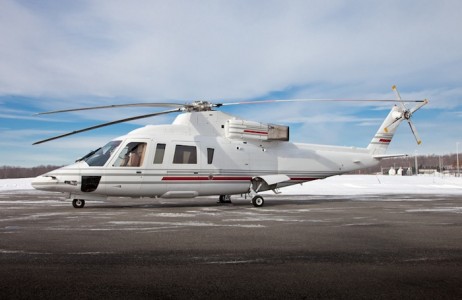

Matterhorn White with Medium Gray and Toreador Red accent stripes
Interior:

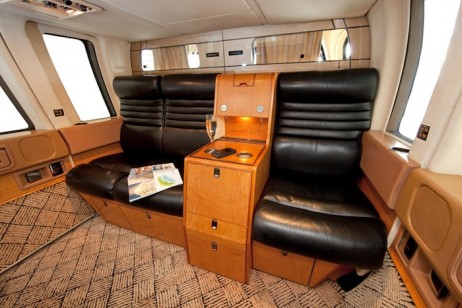

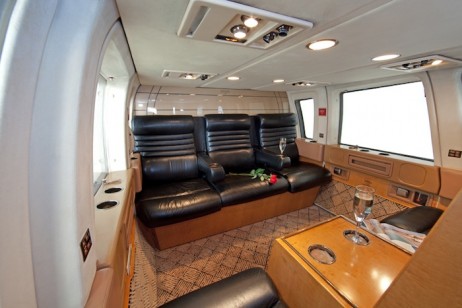

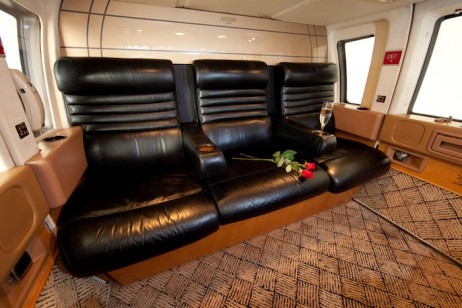

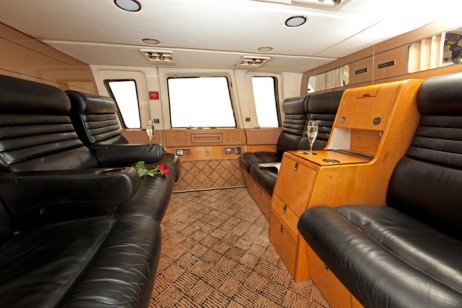

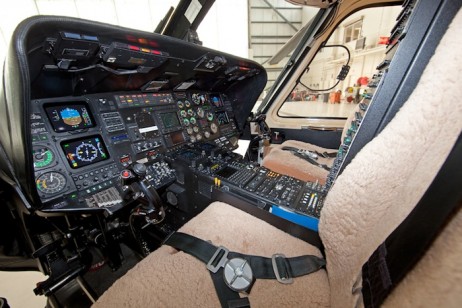

3-Place Aft-Facing Executive Divan opposite 4-Place Fwd-Facing Divan, Two Hot Liquid Containers, Ice Drawer and Life Vest Storage, Brushed Black Plating on all bright surfaces, Executive Credenza. Pilot and Co-Pilot’s Sheepskin Upholstery for Cockpit Seats. Cockpit JEPPs and Flight Manual Storage, Light brown patterned Wool Carpet, All seats covered in Black leather. Woodwork is medium Cherry.
Inspections:
| Description 36 Month / 1250 hr Inspection 12 Month / 1500 hr Inspection 500 hr Tail Rotor Inspection 900 hr Main Blade Inspection 24 Month FAR Checks |
Complied With April 8th, 2010 Sept 21st, 2010 5,000 5,000 August 31st, 2011 |
Next Due Date April 8th, 2013 Sept 21st, 2012 N/A N/A August 31st, 2013 |
Next Due Hours 5,814 6,166 5,500 5,900 N/A |
Weights:
- Empty Weight – 8,852 lb
- Fuel Capacity – 1,870 lbs
- Maximum Gross Weight – 11,700 lb
Maintenance tracking provided by CAMP and available upon request
